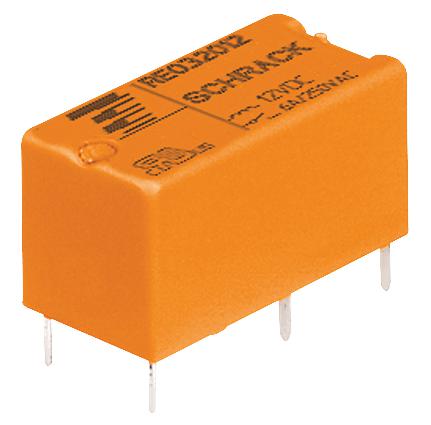

RE034012 Relay, SPST-NO, 250VAC, 6a Te Connectivity

TE CONNECTIVITYSKU:2-1416010-6 Bestelcode:1629021

Prijs:
Actie prijs€5,70

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (254 units)

Documenten en downloads

Omschrijving

TE CONNECTIVITY - 2-1416010-6 - General Purpose Relay, RE Series, Power, Non Latching, SPST-NO, 12 VDC, 6 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 12VDC
  • Contact Current: 6A
  • Product Range: RE Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel
  • Coil Resistance: 720ohm
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: VDE
  • Approval Category: UL Recognised
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 6A
  • Contact Current DC Max: 6A
  • Contact Current Max: 6A
  • Contact Voltage AC Nom: 240V
  • DC Coil Power: 200mW
  • Dielectric Voltage Coil to Contact: 4000V
  • Dielectric Voltage Contact to Contact: 1000V
  • External Depth: 10mm
  • External Height: 10.6mm
  • External Length / Height: 10.6mm
  • External Width: 20mm
  • Nom Operating Power: 200mW
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Operating Time: 5ms
  • Relay Type: Power
  • Release Time: 1ms
  • Switching Voltage AC / DC Max: 400VAC
  • Voltage Rating VAC: 240VAC
