Omschrijving

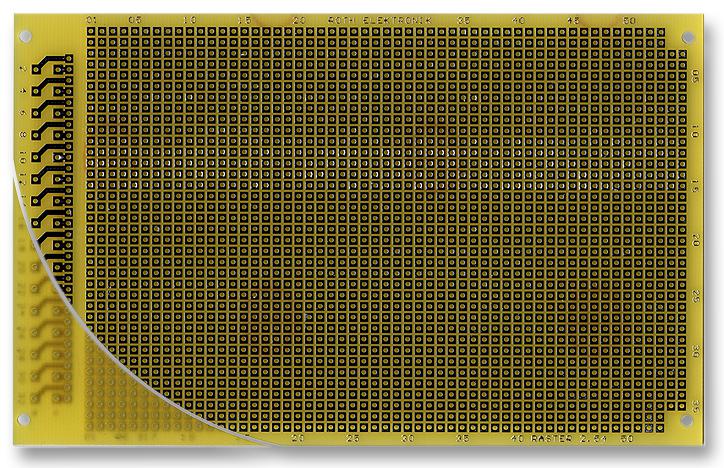

ROTH ELEKTRONIK - RE317-LF - PCB, Eurocard, FR24, Epoxy Glass Composite, 1.5mm, 100mm x 160mm
- Board Type: Eurocard
- Board Material: Epoxy Glass Composite
- Hole Diameter: 1mm
- External Height: 100mm
- External Width: 160mm
- Board Thickness: 1.5mm
- SVHC: No SVHC (15-Jan-2019)
- Board Connector / Footprint: DIN41612
- Copper Coating Density: HAL 5 - 6 µm (hole 2 - 3 µm)
- Copper Thickness: 35µm
- External Length / Height: 100mm
- Hole Matrix: 37 x 55
- Hole Pitch: 2.54mm
- Material: Epoxy FR4
- No. of Copper Coated Sides: 1
- No. of Holes: 2035
- PCB Size: 100 x 160 mm
- Pad Area: 2.00 mm²
- Pitch Spacing: 2.54mm
