Omschrijving

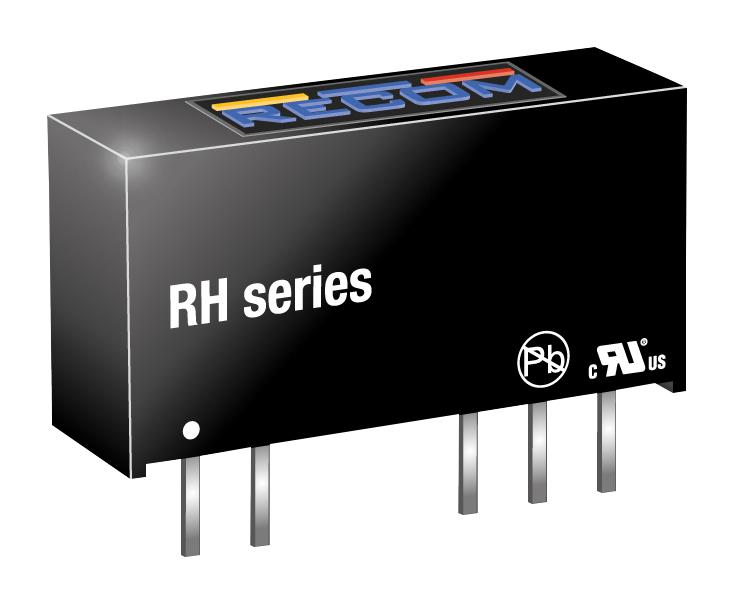

RECOM POWER - RH-2415D - Isolated Through Hole DC/DC Converter, Medical, 1:1, 1 W, 2 Output, 15 V, 33 mA
- No. of Outputs: 2 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 15V
- Output Current - Output 1: 33mA
- Output Voltage - Output 2: -15V
- Output Current - Output 2: 33mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: RH Series
- Input Voltage DC Min: 21.6V
- Input Voltage DC Max: 26.4V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 6mm
- Height: 10.2mm
- Depth: 19.6mm
- SVHC: No SVHC (15-Jan-2019)
- Approvals & Standards: IEC 60601, UL
- Input Voltage: 24V
- No. of Outputs: 2Outputs
