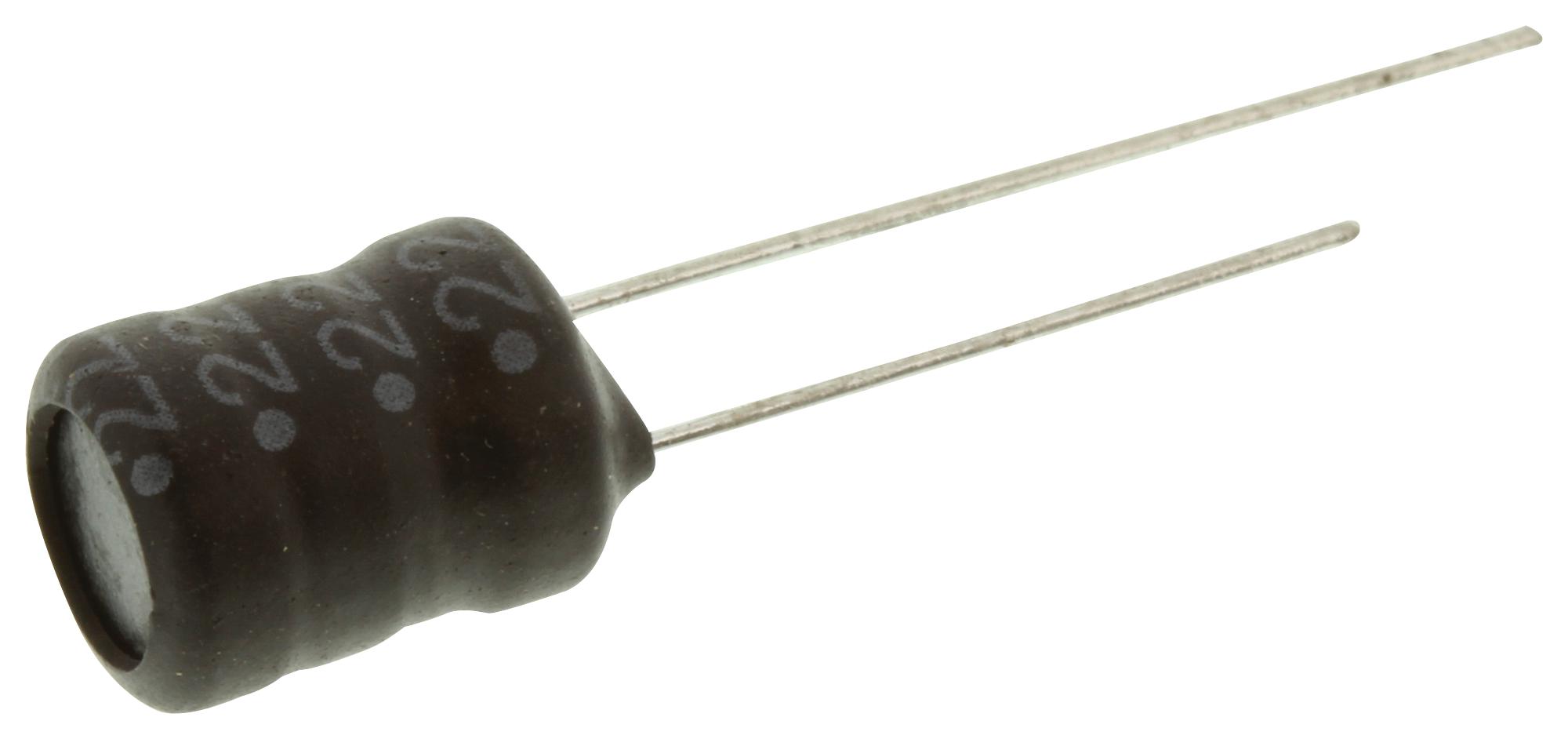

BOURNS - RLB9012-222KL - Inductor, Radial, RLB Series, 2.2 mH, 360 mA, 5.9 ohm, ± 10%
- Product Range: RLB Series
- Inductance: 2.2mH
- RMS Current (Irms): 360mA
- Saturation Current (Isat): -
- DC Resistance Max: 5.9ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- Core Material: Ferrite DR
- DC Current Rating: 360mA
- Inductor Case Style: Radial Leaded
- Lead Spacing: 5mm
- No. of Pins: 2Pins
- Q Factor: 15
- Q Test Frequency: 252kHz
- Self Resonant Frequency Min: 800kHz
