Rm-0505S DC/DC, UNREG, 0.25W, 05V, 05V, SIP4 RECOM Power

RECOM POWERSKU:RM-0505S Bestelcode:1793297

Prijs:
Actie prijs€11,07

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (80 units)

Documenten en downloads

Omschrijving

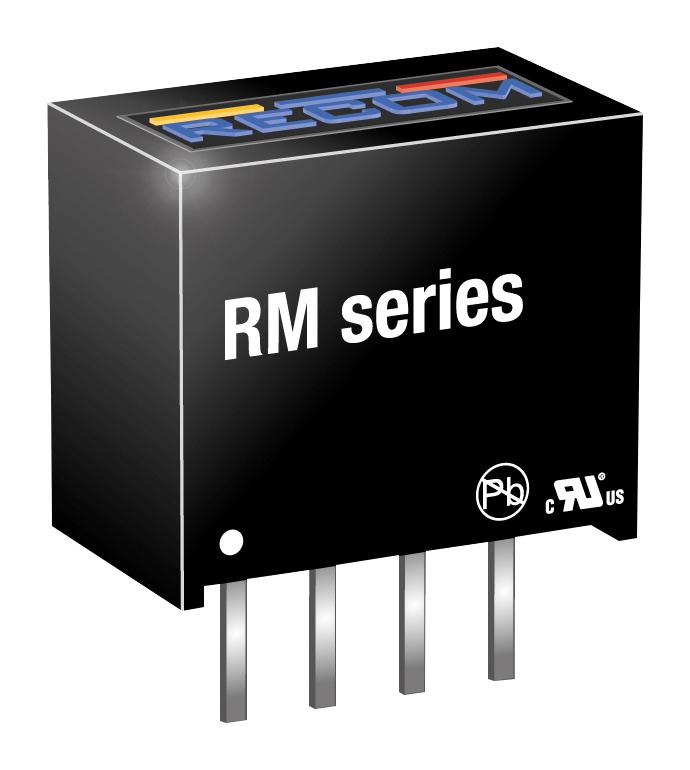

RECOM POWER - RM-0505S - Isolated Through Hole DC/DC Converter, Medical, 1:1, 250 mW, 1 Output, 5 V, 50 mA

  • No. of Outputs: 1 Output
  • Output Power Max: 250mW
  • Output Voltage - Output 1: 5V
  • Output Current - Output 1: 50mA
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: RM Series
  • Input Voltage DC Min: 4.5V
  • Input Voltage DC Max: 5.5V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: SIP
  • DC / DC Converter Mounting: Through Hole
  • Width: 6mm
  • Height: 10mm
  • Depth: 11.5mm
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: EN
  • Efficiency Max: 76%
  • External Depth: 10mm
  • External Length / Height: 11.5mm
  • External Width: 6mm
  • Isolation Voltage: 1kV
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: +85°C
  • Operating Temperature Min: -40°C
  • Power Rating: 250mW
