Omschrijving

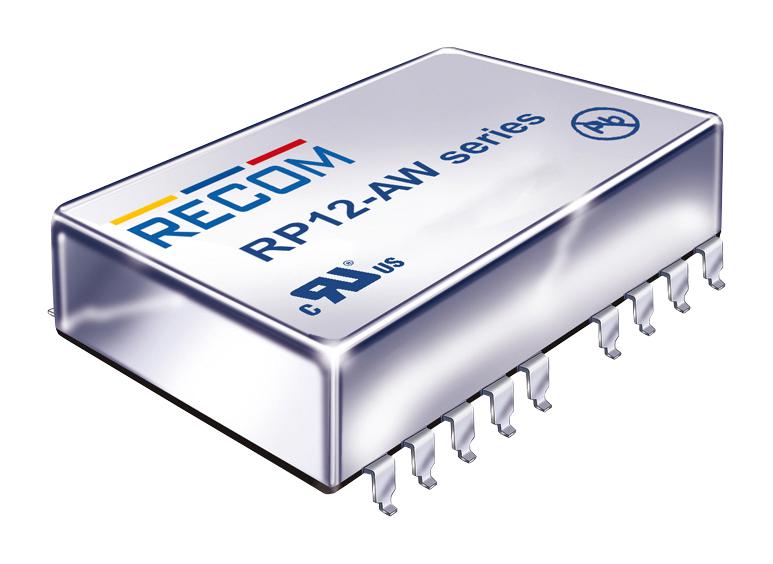

RECOM POWER - RP12-2412DAW - Isolated Through Hole DC/DC Converter, ITE, 4:1, 12 W, 2 Output, 12 V, 500 mA
- DC/DC CONVERTER, 12W, DUAL, 4: 1, 12V
- No. of Outputs: 2 Output
- Output Power Max: 12W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 500mA
- Output Voltage - Output 2: -12V
- Output Current - Output 2: 500mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: -
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 20.3mm
- Height: 10.2mm
- Depth: 31.8mm
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: UL
- Approvals & Standards: UL
- Isolation Voltage: 1.6kV
- No. of Outputs: 2Outputs
- Power Rating: 12W
