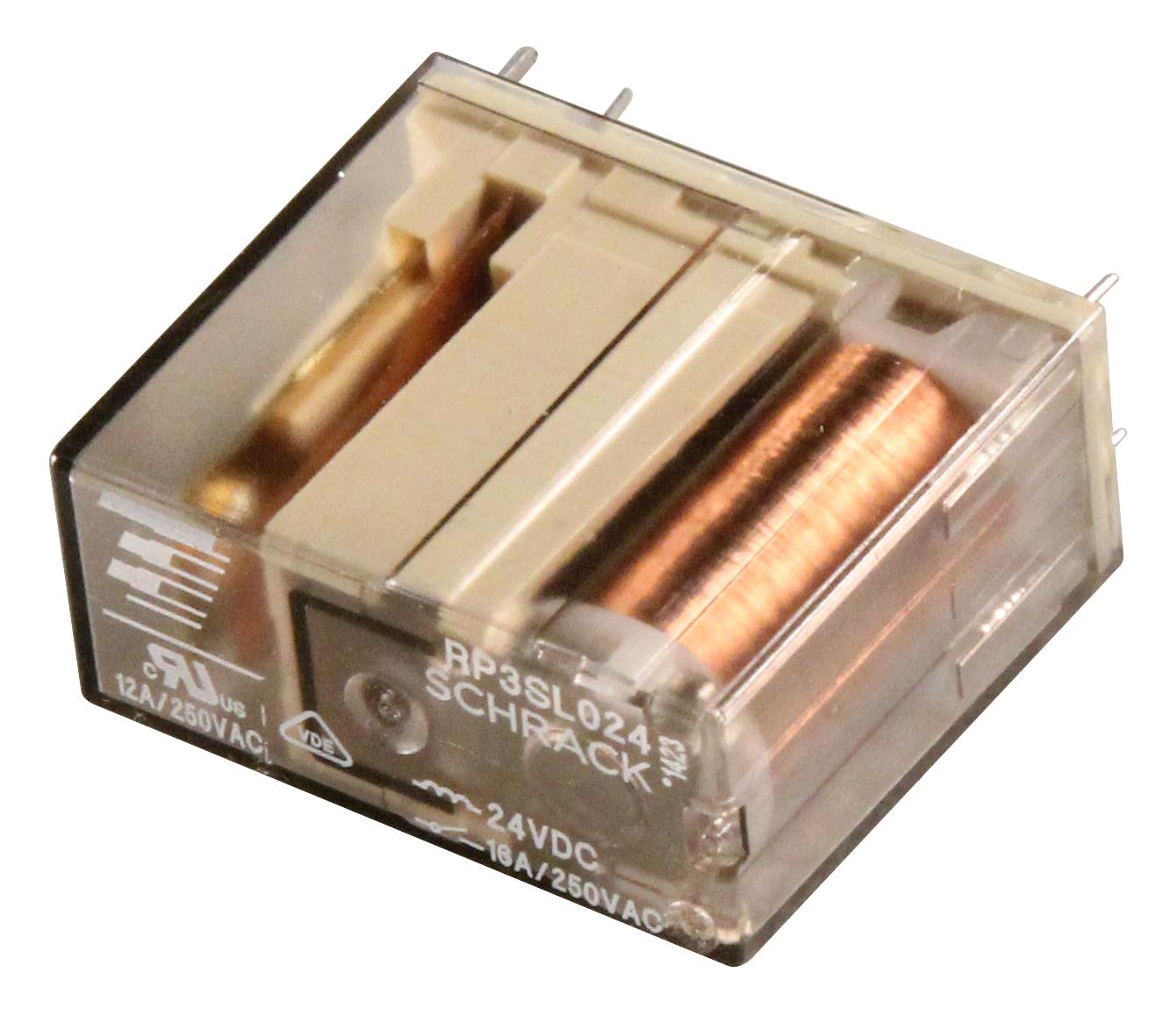

RP3SL024 Relay, SPST-NO, 250VAC, 16A Te Connectivity

TE CONNECTIVITYSKU:RP3SL024 Bestelcode:1175055

Prijs:
Actie prijs€17,72

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (16772 units)

Documenten en downloads

Omschrijving

TE CONNECTIVITY - 1-1393230-1 - General Purpose Relay, RP3SL Series, Power, SPST-NO, 24 VDC, 16 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 24VDC
  • Contact Current: 16A
  • Product Range: RP3SL Series
  • Relay Mounting: Through Hole
  • Coil Type: DC
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 1.1kohm
  • SVHC: No SVHC (12-Jan-2017)
  • Approval Bodies: VDE
  • Approval Category: UL Recognised
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 16A
  • Contact Current DC Max: 16A
  • Contact Current Max: 16A
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 24V
  • Control Voltage AC Max: 400VAC
  • DC Coil Power: 500mW
  • Dielectric Voltage Coil to Contact: 4000VAC
  • Dielectric Voltage Contact to Contact: 2000VAC
  • External Depth: 25.5mm
  • External Height: 29mm
  • External Length / Height: 29mm
  • External Width: 12.6mm
  • Inrush Current Max: 120A (20ms)
  • Must Actuate Voltage: 18V
  • Must Release Voltage: 2.4V
  • Nom Operating Power: 524mW
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Weight: 18g
