RP73D1J237KBTDG Res, 237K, 0.1%, 0.1W, 0603, Thin Film HOLSWORTHY - Te Connectivity

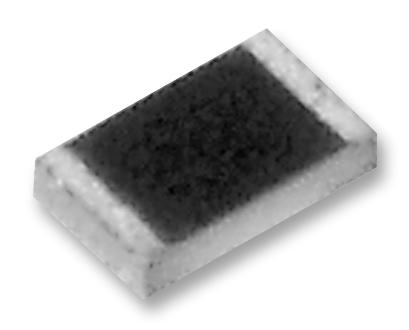

HOLSWORTHY - TE CONNECTIVITY - RP73D1J237KBTDG - SMD Chip Resistor, 237 kohm, ± 0.1%, 100 mW, 0603 [1608 Metric], Thin Film, Precision

• Resistor Case Style: 0603 [1608 Metric]
• Resistance: 237kohm
• Product Range: RP73 Series
• Voltage Rating: 50V
• Resistor Element Material: Thin Film
• Power Rating: 100mW
• Resistance Tolerance: ± 0.1%
• Temperature Coefficient: ± 15ppm/°C
• Automotive Qualification Standard: -
• External Depth: 0.8mm
• External Length / Height: 0.4mm
• External Width: 1.6mm
• No. of Pins: 2Pins
• Operating Temperature Max: 155°C
• Operating Temperature Min: -55°C
• Operating Temperature Range: -55°C to +155°C
• Overload Voltage: 100V
• Resistor Mounting: Surface Mount Device
