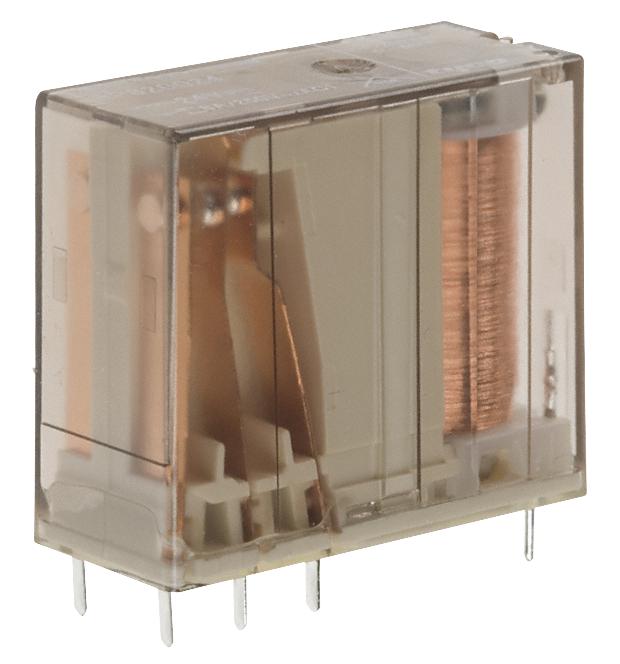

RP821012 Relay, DPDT, 250VAC, 8A SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYSKU:RP821012 Bestelcode:1175011

Prijs:
Actie prijs€18,54

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1712 units)

Documenten en downloads

Omschrijving

SCHRACK - TE CONNECTIVITY - 1393845-4 - General Purpose Relay, RPII/2 Series, Power, Non Latching, DPDT, 12 VDC, 8 A

  • Contact Configuration: DPDT
  • Coil Voltage: 12VDC
  • Contact Current: 8A
  • Product Range: RPII/2 Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel
  • Coil Resistance: 270ohm
  • SVHC: No SVHC (12-Jan-2017)
  • Approval Bodies: KEMA-KEUR, SEV, VDE
  • Approval Category: UL Recognised
  • Coil Current: 21.8mA
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 8A
  • Contact Current DC Max: 8A
  • Contact Current Max: 8A
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 21.6V
  • DC Coil Power: 500mW
  • Dielectric Voltage Coil to Contact: 4kV
  • Dielectric Voltage Contact to Contact: 2.5kV
  • External Depth: 25.5mm
  • External Height: 29mm
  • External Length / Height: 29mm
  • External Width: 12.6mm
  • IP / NEMA Rating: IP67
  • No. of Pins: 8Pins
  • Nom Operating Power: 500mW
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Operating Time: 8ms
  • Release Time: 2ms
  • Weight: 18g
