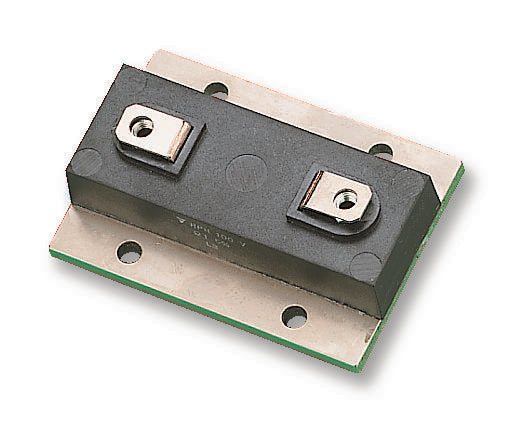

VISHAY - RPH100VR1000JB - Resistor, 0.1 ohm, RPH 100, 100 W, ± 5%, Screw, 1.9 kV
- Resistance: 0.1ohm
- Product Range: RPH 100 Series
- Power Rating: 100W
- Resistance Tolerance: ± 5%
- Resistor Terminals: Screw
- Voltage Rating: 1.9kV
- Resistor Element Material: Thick Film
- Temperature Coefficient: ± 300ppm/°C
- Element Limiting Voltage: 1900V
- External Depth: 21.6mm
- External Length / Height: 65.5mm
- External Width: 46.7mm
- Fixing Centres LxW: 35 x 37
- Fixing Hole Diameter: 4.2mm
- Full Power Rating Temperature: 25°C
- Insulation Resistance: 1000000Mohm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Overload Capability: 4 x Pr for 5 secs
- Power Rating with Heatsink: 100W
- Resistor Mounting: Panel
- Temperature Coeff. +: 300ppm/°C
- Temperature Coeff. -: 300ppm/°C
- Thermal Resistance: 0.55°C/W
- Tolerance +: 5%
- Tolerance -: 5%
