MULTICOMP PRO - RS1A+ - Standard Recovery Diode, 50 V, 1 A, Single, 1.3 V, 150 ns, 30 A
- Repetitive Reverse Voltage Vrrm Max: 50V
- Forward Current If(AV): 1A
- Diode Configuration: Single
- Forward Voltage VF Max: 1.3V
- Reverse Recovery Time trr Max: 150ns
- Forward Surge Current Ifsm Max: 30A
- Operating Temperature Max: 150°C
- Diode Case Style: DO-214AC
- No. of Pins: 2Pins
- Product Range: -
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Alternate Case Style: DO-214AC
- Current If @ Vf: 1A
- Current Ifsm: 30A
- Current Ir Max: 5µA
- Diode Type: Fast Recovery
- External Depth: 1.58mm
- External Length / Height: 2.61mm
- External Width: 4.75mm
- Flammability Rating: UL94V-0
- Forward Current If Max: 1A
- Forward Voltage: 1.3V
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -55°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Peak Forward Current: 1A
- Reverse Voltage Vr Max: 50V
- SMD Marking: RS1A
- Termination Type: Surface Mount Device
- Weight: 0.000068kg
Verwachte verzendkosten
Bekijk ook eens

MULTICOMP PRO
RS3B+ Rectifier, Single, 3a, 100V, DO-214AB multicomp Pro
Actie prijs€0,97
Op voorraad, 3345 producten
TAIWAN SEMICONDUCTOR
RS1B Rectifier, Single, 1A, 100V, DO-214AC Taiwan Semiconductor
Actie prijs€0,96
Op voorraad, 41 producten
MULTICOMP PRO
S1B+ Rectifier, Single, 1A, 100V, DO-214AC multicomp Pro
Actie prijs€0,21
Op voorraad, 52814 producten
DIODES INC.
RS1A-13-F Diode, Rectifier, Fast Rec, 1A, 50V, Sma Diodes Inc.
Actie prijs€0,49
Op voorraad, 5625 producten
ONSEMI

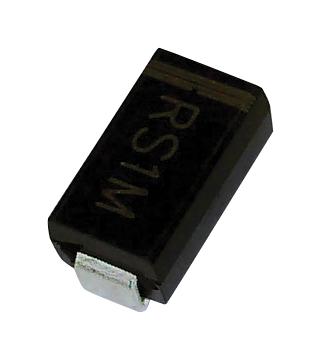

RS1M Rectifier, Standard, 1A, 1kV, DO-214AC ONSEMI
Actie prijs€0,51
Op voorraad, 7051 producten
ONSEMI

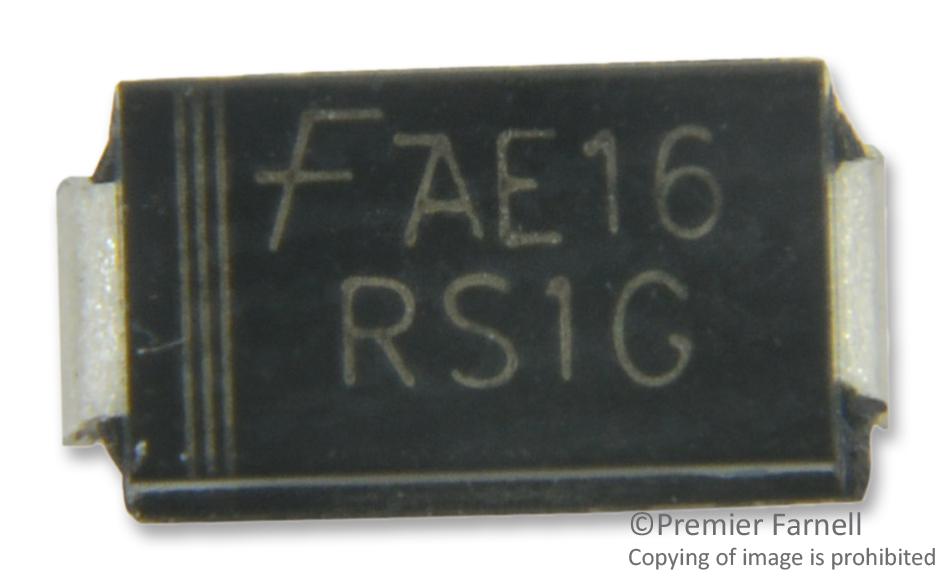

RS1G Rectifier, Standard, 1A, 400V, DO-214AC ONSEMI
