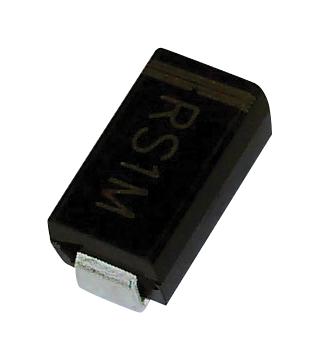

RS1M+ Rectifier, Single, 1A, 1kV, DO-214AC multicomp Pro

MULTICOMP PROSKU:RS1M+ Bestelcode:2675063

Prijs:
Actie prijs€0,24

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (222158 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - RS1M+ - Standard Recovery Diode, 1 kV, 1 A, Single, 1.3 V, 500 ns, 30 A

  • Repetitive Reverse Voltage Vrrm Max: 1kV
  • Forward Current If(AV): 1A
  • Diode Configuration: Single
  • Forward Voltage VF Max: 1.3V
  • Reverse Recovery Time trr Max: 500ns
  • Forward Surge Current Ifsm Max: 30A
  • Operating Temperature Max: 150°C
  • Diode Case Style: DO-214AC
  • No. of Pins: 2Pins
  • Product Range: -
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Current Ifsm: 30A
  • Diode Type: Fast Recovery
  • External Depth: 2.5mm
  • External Length / Height: 2.83mm
  • External Width: 4.6mm
  • Forward Current If Max: 1A
  • Forward Voltage: 1.3V
  • Junction Temperature Tj Max: 150°C
  • Junction Temperature Tj Min: -55°C
  • Junction to Case Thermal Resistance A: 105°C/W
  • No. of Pins: 2 Pin
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Reverse Recovery Time trr Typ: 500ns
  • Termination Type: Surface Mount Device
