Omschrijving

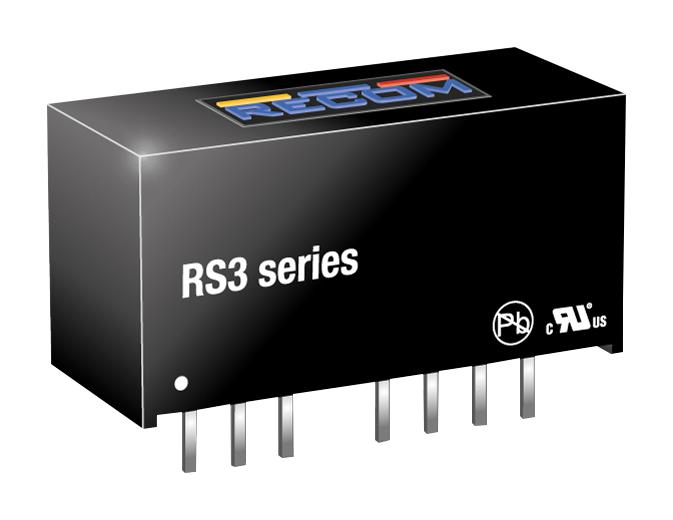

RECOM POWER - RS3-1215D - Isolated Through Hole DC/DC Converter, Medical, 2:1, 3 W, 2 Output, 15 V, 100 mA
- DC/DC CONVERTER, 3W, DUAL, 2: 1, 15V
- No. of Outputs: 2 Output
- Output Power Max: 3W
- Output Voltage - Output 1: 15V
- Output Current - Output 1: 100mA
- Output Voltage - Output 2: -15V
- Output Current - Output 2: 100mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: RS3 Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 18V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 9.2mm
- Height: 11.1mm
- Depth: 21.8mm
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: EN 60601
- Approvals & Standards: IEC 60601
- Isolation Voltage: 1kV
- No. of Outputs: 2Outputs
- Power Rating: 3W
