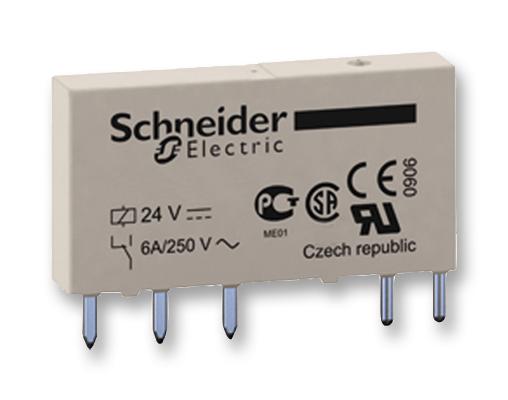

SCHNEIDER ELECTRIC - RSL1AB4BD - General Purpose Relay, RSL Series, Interface, SPDT, 24 VDC, 6 A
- Contact Configuration: SPDT
- Coil Voltage: 24VDC
- Contact Current: 6A
- Product Range: Zelio Series
- Relay Mounting: Socket
- Coil Type: DC
- Contact Voltage VAC: 250VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: 24V
- Contact Material: Silver Alloy
- Coil Resistance: 3.39kohm
- SVHC: No SVHC (15-Jan-2018)
- Average Power Consumption: 170mW
- Coil Voltage VDC Nom: 24V
- Contact Current Max: 6A
- Contact Voltage AC Nom: 400V
- Contact Voltage DC Max: 300V
- External Depth: 28mm
- External Height: 15mm
- External Width: 5mm
- Relay Type: Interface
