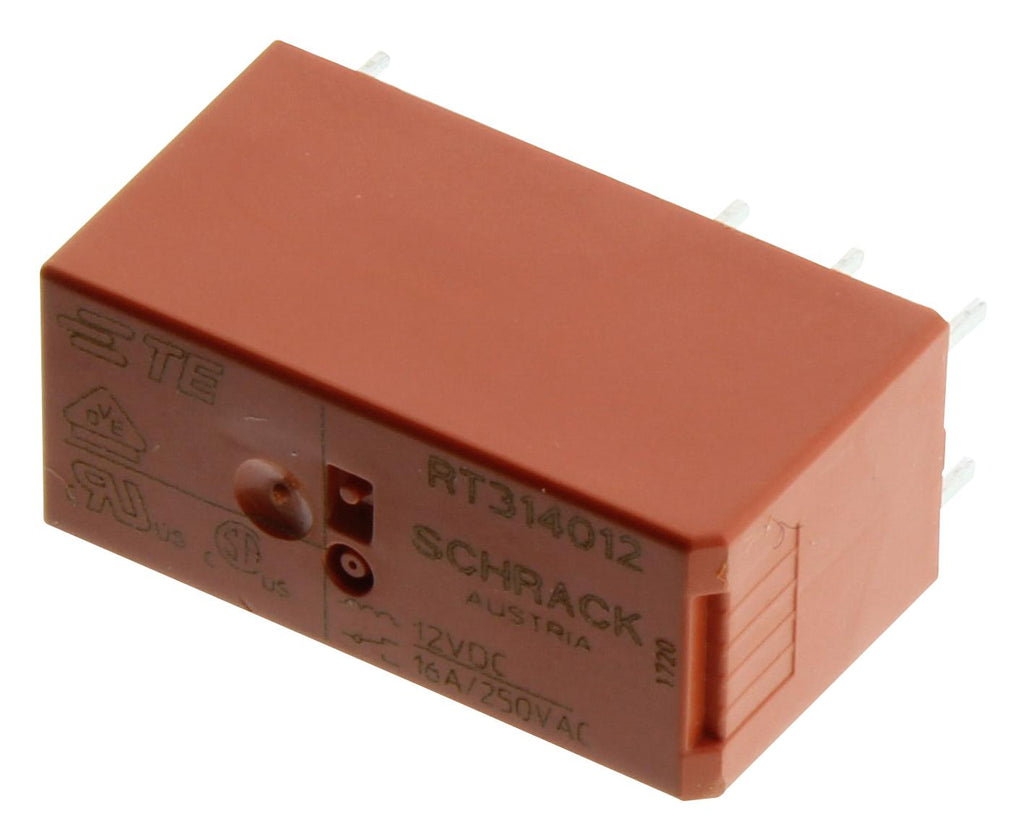

RT314012 Relay, SPDT, 250VAC, 16A SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYSKU:RT314012 Bestelcode:1629044

Prijs:
Actie prijs€6,34

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (13745 units)

Documenten en downloads

Omschrijving

SCHRACK - TE CONNECTIVITY - RT314012 - General Purpose Relay, Power PCB Relay RT1 Series, Power, Non Latching, SPDT, 12 VDC, 16 A

  • Contact Configuration: SPDT
  • Coil Voltage: 12VDC
  • Contact Current: 16A
  • Product Range: RT1 Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel
  • Coil Resistance: 360ohm
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: BEAB, CSA, KEMA-KEUR, VDE
  • Approval Category: UL Recognised
  • Approvals & Standards: CSA, UL, VDE
  • Coil Voltage VDC Nom: 12V
  • Contact Current Max: 16A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 250V
  • Current Rating: 16A
  • DC Coil Power: 400mW
  • Dielectric Voltage Coil to Contact: 5000V
  • Dielectric Voltage Contact to Contact: 1000V
  • External Depth: 12.7mm
  • External Height: 15.7mm
  • External Length / Height: 15.7mm
  • External Width: 29mm
  • Lead Spacing: 5mm
  • No. of Pins: 8Pins
  • Nom Operating Power: 400mW
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Time: 7ms
  • Relay Type: Power - General Purpose
  • Release Time: 3ms
  • Row Pitch: 7.5mm
