Power - General Purpose
SCHRACK - TE CONNECTIVITY Power - General Purpose RTX3-1AT-C012 RELAY, SPST-NO, 250VAC, 16A SCHRACK - TE CONNECTIVITY 2325607 1937650-8

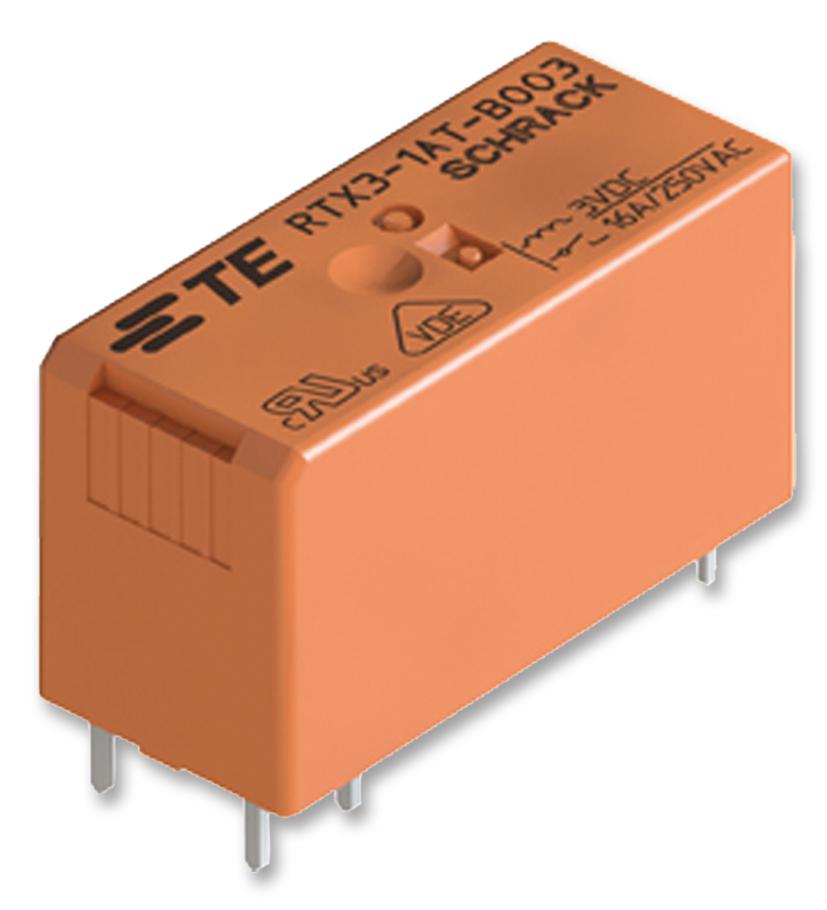

Ga met de muis over de afbeelding om in te zoomen Klik op de afbeelding om in te zomen
SCHRACK - TE CONNECTIVITY Power - General Purpose RTX3-1AT-C012 RELAY, SPST-NO, 250VAC, 16A SCHRACK - TE CONNECTIVITY 2325607 1937650-8

RTX3-1AT-C012 Relay, SPST-NO, 250VAC, 16A SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYSKU:1937650-8 Bestelcode:2325607
Prijs:
€21,90

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

SCHRACK - TE CONNECTIVITY - 1937650-8 - General Purpose Relay, RTX Series, Power, Latching Dual Coil, SPST-NO, 12 VDC

  • Contact Configuration: SPST-NO
  • Coil Voltage: 12VDC
  • Contact Current: 16A
  • Product Range: RTX Series
  • Relay Mounting: Through Hole
  • Coil Type: Latching Dual Coil
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Tungsten, Silver Tin Oxide
  • Coil Resistance: 150ohm
  • SVHC: No SVHC (15-Jan-2018)
  • Coil Voltage VDC Nom: 12V
  • Contact Current Max: 16A
  • Contact Voltage AC Nom: 250V
  • External Depth: 29.1mm
  • External Height: 16mm
  • External Width: 12.7mm
  • Nom Operating Power: 950mW
  • Relay Type: Power - General Purpose
