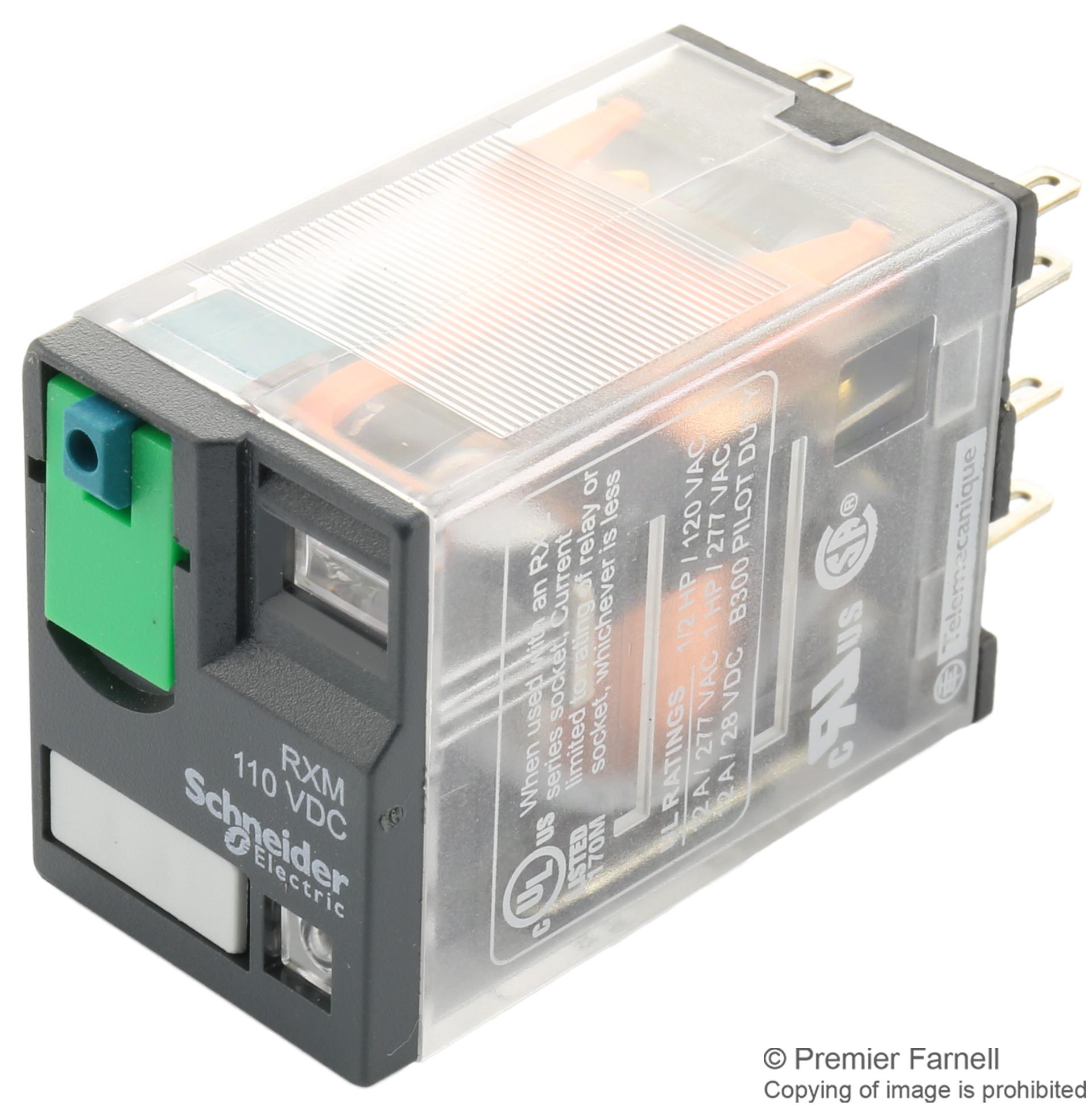

SCHNEIDER ELECTRIC - RXM2AB2FD - Power Relay, DPDT, 110 VDC, 12 A, Zelio RXM, Socket
- Contact Configuration: DPDT
- Coil Voltage: 110VDC
- Contact Current: 12A
- Product Range: Zelio RXM Series
- Relay Mounting: Socket
- Coil Type: -
- Contact Voltage VAC: 250VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: 28VDC
- Contact Material: Silver Nickel
- Coil Resistance: 13.44kohm
- SVHC: No SVHC (15-Jan-2018)
- Approvals & Standards: CSA, EN, IEC, UL
