RY2S-Ud-DC24V Relay, DPDT, 240Vac, 30Vdc, 3a Idec

IDECSKU:RY2S-UD-DC24V Bestelcode:2103601

Prijs:
Actie prijs€23,96

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (40 units)

Documenten en downloads

Omschrijving

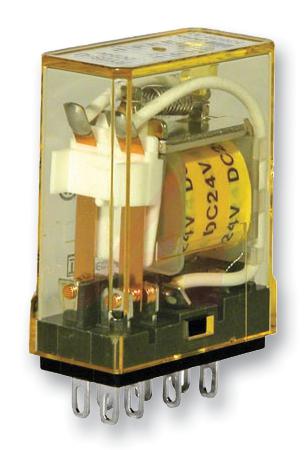

IDEC - RY2S-UD-DC24V - General Purpose Relay, RY Series, Power, Non Latching, DPDT, 24 VDC, 3 A

  • Contact Configuration: DPDT
  • Coil Voltage: 24VDC
  • Contact Current: 3A
  • Product Range: RY Series
  • Relay Mounting: Socket
  • Coil Type: Non Latching
  • Contact Voltage VAC: 240VAC
  • Relay Terminals: Quick Connect
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver
  • Coil Resistance: 750ohm
  • SVHC: No SVHC (15-Jan-2019)
  • Approvals & Standards: CSA, UL
  • Coil Current: 32mA
  • Coil Voltage VDC Nom: 24V
  • Contact Current Max: 3A
  • Contact Voltage AC Nom: 220V
  • Contact Voltage DC Nom: 30V
  • External Depth: 27.5mm
  • External Height: 35.6mm
  • External Width: 14mm
  • Nom Operating Power: 800mW
  • Relay Type: Power - General Purpose
