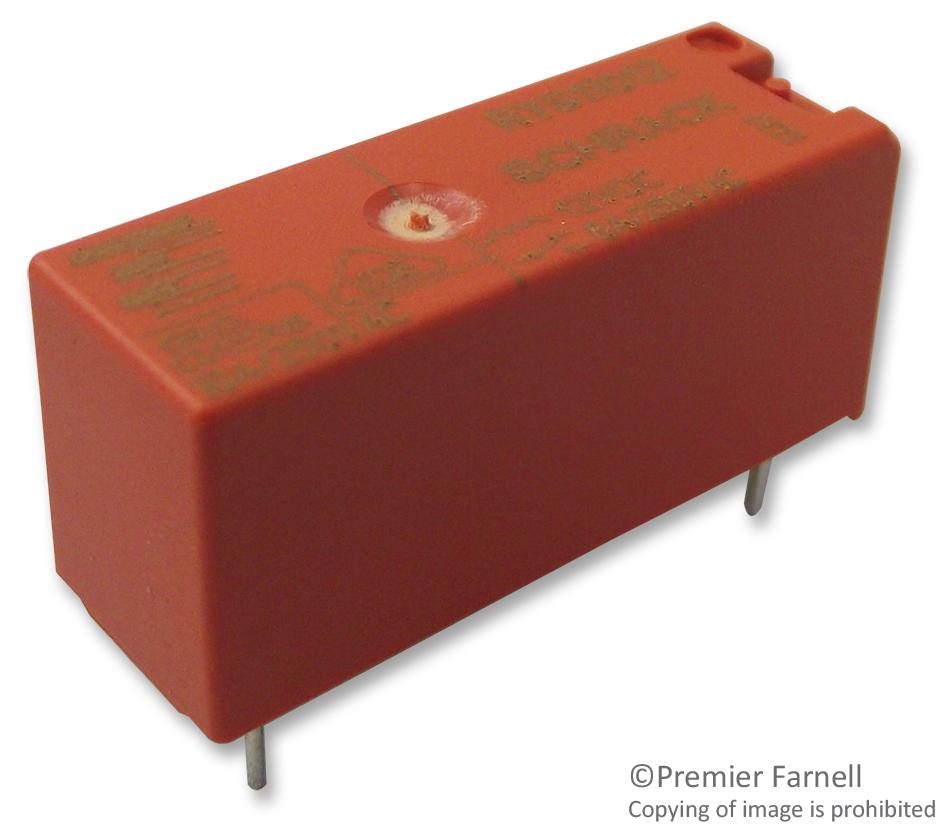

RY611012 Relay, SPDT, 250VAC, 8A SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYSKU:RY611012 Bestelcode:9659714

Prijs:
Actie prijs€4,94

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2763 units)

Documenten en downloads

Omschrijving

SCHRACK - TE CONNECTIVITY - 1-1393225-9 - General Purpose Relay, RYII Series, Power, Non Latching, SPDT, 12 VDC, 8 A

  • Contact Configuration: SPDT
  • Coil Voltage: 12VDC
  • Contact Current: 8A
  • Product Range: RYII Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel
  • Coil Resistance: 627ohm
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: VDE
  • Approval Category: UL Recognised
  • Approvals & Standards: VDE
  • Coil Current: 19.3mA
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 8A
  • Contact Current Max: 8A
  • Contact Voltage AC Max: 400V
  • Contact Voltage AC Nom: 240V
  • Current Rating: 8A
  • DC Coil Power: 200mW
  • Dielectric Voltage Coil to Contact: 5000VAC
  • Dielectric Voltage Contact to Contact: 1000VAC
  • External Depth: 10.1mm
  • External Height: 12.3mm
  • External Length / Height: 12.3mm
  • External Width: 28.5mm
  • Lead Spacing: 3.2mm
  • Must Actuate Voltage: 8.4VDC
  • No. of Pins: 5Pins
  • Nom Operating Power: 230mW
  • Operating Frequency Max: 1200Hz
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Weight: 8g
