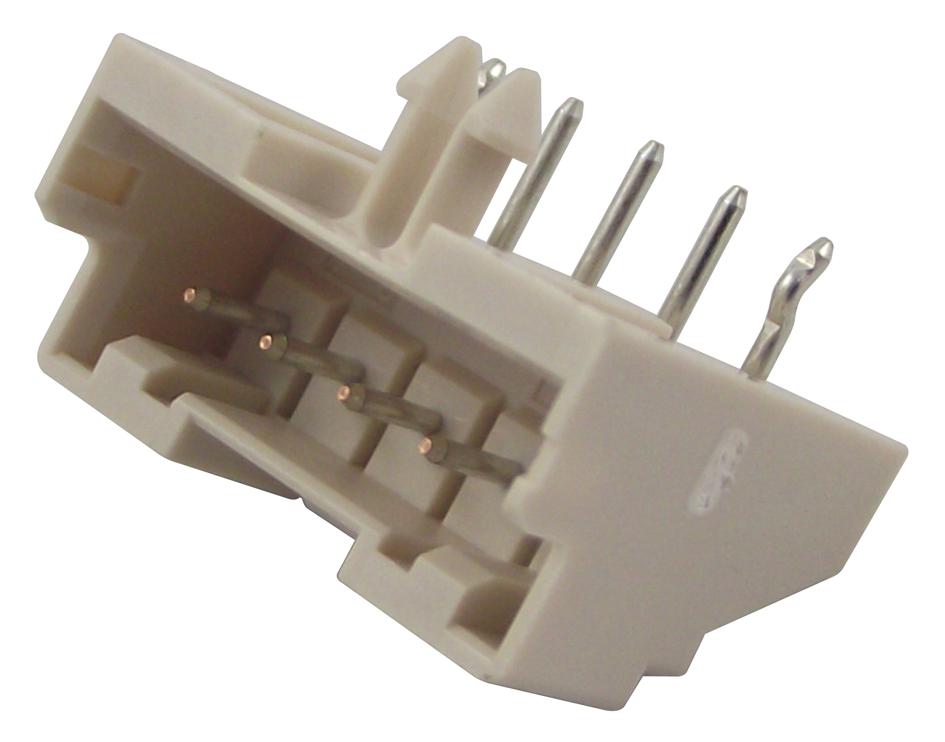

S05B-XASK-1(LF)(SN) CONNECTOR, HEADER, 2.5MM, 5POS, 1ROW JST (JAPAN SOLDERLESS TERMINALS)
Ga met de muis over de afbeelding om in te zoomen Klik op de afbeelding om in te zomen
S05B-XASK-1(LF)(SN) CONNECTOR, HEADER, 2.5MM, 5POS, 1ROW JST (JAPAN SOLDERLESS TERMINALS)

S05B-XASK-1(LF)(Sn) Connector, Header, 2.5mm, 5Pos, 1ROW JST (Japan Solderless Terminals)

JST (JAPAN SOLDERLESS TERMINALS)SKU:S05B-XASK-1(LF)(SN) Bestelcode:9492160
Prijs:
€0,91

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

JST (JAPAN SOLDERLESS TERMINALS) - S05B-XASK-1(LF)(SN) - Pin Header, Wire-to-Board, 2.5 mm, 1 Rows, 5 Contacts, Through Hole, XA

  • Pitch Spacing: 2.5mm
  • No. of Contacts: 5Contacts
  • Gender: Header
  • Product Range: XA Series
  • Contact Termination Type: Crimp
  • No. of Rows: 1Rows
  • Contact Plating: Tin Plated Contacts
  • Contact Material: Copper Alloy
  • SVHC: No SVHC (27-Jun-2018)
  • Colour: Ivory
  • Contact Resistance Max: 10mohm
  • Current Rating: 3A
  • External Depth: 12.6mm
  • External Width: 15mm
  • Flammability Rating: UL94V-0
  • Height: 7.6mm
  • Insulation Resistance: 1000Mohm
  • Lead Length: 3.4mm
  • Material: Nylon 6.6
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Voltage Rating V DC: 250V
  • Voltage Rating VAC: 250V
  • Wire Size AWG Max: 20AWG
  • Wire Size AWG Min: 28AWG
  • Withstand Voltage: 1000VAC
