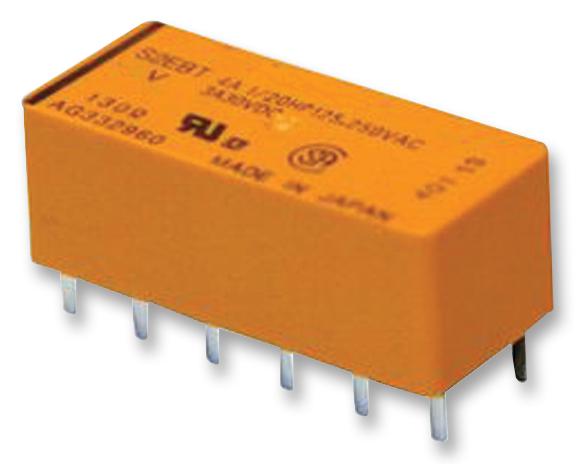

S4EB-24V Relay, 4PST-NO, 250VAC, 30Vdc, 4A Panasonic

PANASONICSKU:S4EB-24V Bestelcode:1426708

Prijs:
Actie prijs€22,26

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (222 units)

Documenten en downloads

Omschrijving

PANASONIC - S4EB-24V - General Purpose Relay, S Series, Power, Non Latching, 4PST-NO, 24 VDC, 4 A

  • Contact Configuration: 4PST-NO
  • Coil Voltage: 24VDC
  • Contact Current: 4A
  • Product Range: S Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Nickel
  • Coil Resistance: 2.85kohm
  • SVHC: No SVHC (07-Jul-2017)
  • Approval Bodies: CSA
  • Approval Category: UL Recognised
  • Coil Current: 8.4mA
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 4A
  • Contact Current DC Max: 3A
  • Contact Current Max: 4A
  • Contact Current Min: 100µA
  • Contact Resistance: 50mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 202mW
  • External Depth: 12mm
  • External Height: 10.4mm
  • External Length / Height: 10.4mm
  • External Width: 28mm
  • Inductance: 1427mH
  • Insulation Resistance: 10000Mohm
  • Insulation Resistance Voltage: 500VDC
  • Lead Spacing: 5.08mm
  • Must Actuate Voltage: 16.8V
  • Must Release Voltage: 2.4V
  • No. of Electrical Operations: 100000
