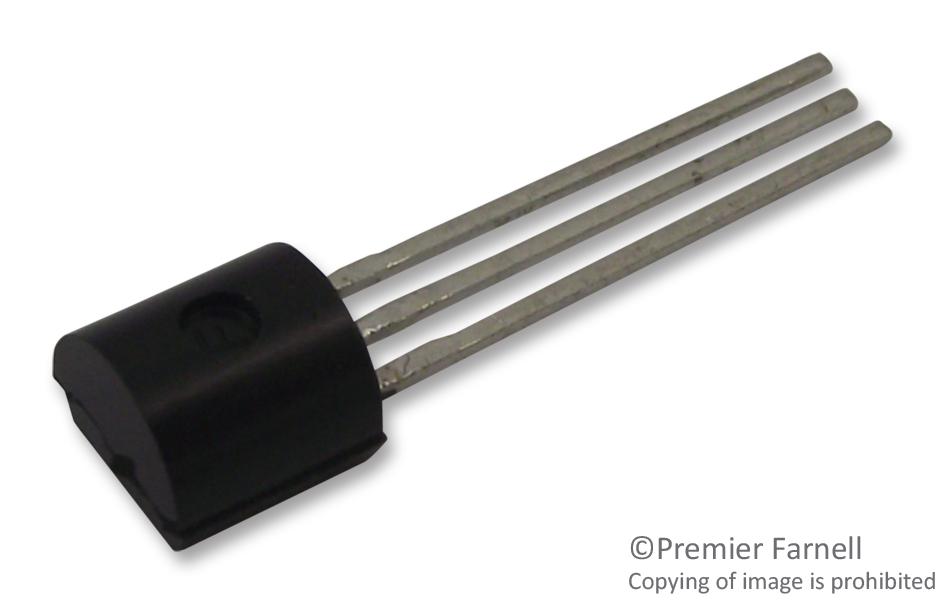

LITTELFUSE - S6X8ES - Thyristor, 600 V, 200 µA, 510 mA, 800 mA, TO-92, 3 Pins
- Peak Repetitive Off-State Voltage, Vdrm: 600V
- Gate Trigger Current Max, Igt: 200µA
- Current It av: 510mA
- On State RMS Current IT(rms): 800mA
- Thyristor Case Style: TO-92
- No. of Pins: 3Pins
- Peak Non Rep Surge Current Itsm 50Hz: 8A
- Holding Current Max Ih: 5mA
- Gate Trigger Voltage Max Vgt: 800mV
- Operating Temperature Max: 125°C
- Product Range: SxX8xSx Series
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (07-Jul-2017)
