Omschrijving

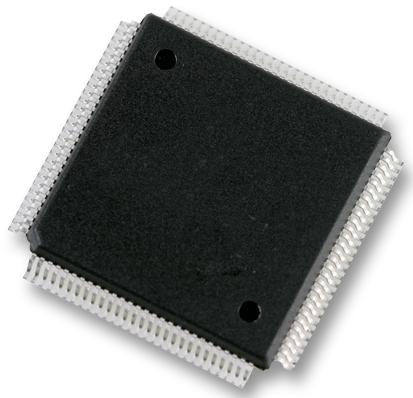

NXP - S9S12DG25F0VPVE - Microcontroller, S12 Family S12D Series Microcontrollers, HCS12, 16bit, 25 MHz, 256 KB, 12 KB
- Product Range: S12 Family S12D Series Microcontrollers
- Architecture: HCS12
- No. of Bits: 16bit
- CPU Speed: 25MHz
- Program Memory Size: 256KB
- RAM Memory Size: 12KB
- No. of Pins: 112Pins
- MCU Case Style: LQFP
- No. of I/O's: 91I/O's
- Embedded Interface Type: CAN, I2C, SCI, SPI
- Supply Voltage Min: 2.5V
- Supply Voltage Max: 5V
- MCU Family: S12
- MCU Series: S12D
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q100
- Controller Family/Series: S12D
- EEPROM Memory Size: 4KB
- MPU Core Size: 16bit
- No. of PWM Channels: 8
- No. of Timers: 1
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +105°C
- Oscillator Type: External, Internal
- Peripherals: ADC, PWM, Timer
- Program Memory Size: 256KB
- Supply Voltage Range: 2.5V to 5V
