Omschrijving

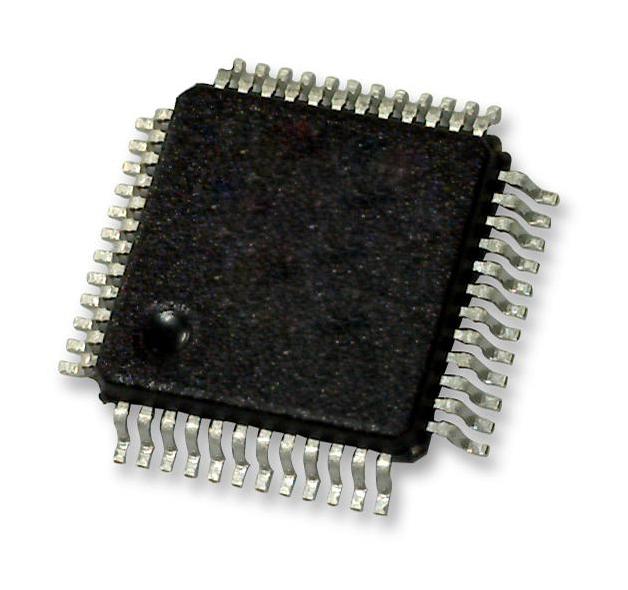

NXP - S9S12G128F0MLF - MCU-Application Specific 16 bit, MC9S12, 25 MHz, 8 KB RAM/128 KB Program, 3.15V-5.5Vin, LQFP-48
- Product Range: S12 Family S12G Series Microcontrollers
- Architecture: HCS12
- MCU Core Size: 16bit
- Program Memory Size: 128KB
- RAM Memory Size: 8KB
- CPU Speed: 25MHz
- No. of I/O's: 40I/O's
- MCU Case Style: LQFP
- No. of Pins: 48Pins
- Embedded Interface Type: CAN, SCI, SPI
- MCU Applications: Automotive
- Supply Voltage Min: 3.15V
- Supply Voltage Max: 5.5V
- MCU Family: S12
- MCU Series: S12G
- Automotive Qualification Standard: AEC-Q100
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Controller Family/Series: MC9S12
- EEPROM Memory Size: 4KB
- MPU Core Size: 16bit
- No. of PWM Channels: 8
- No. of Timers: 8
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Oscillator Type: External, Internal
- Peripherals: ADC, DAC, PWM, Timer
- Program Memory Size: 128KB
- Supply Voltage Range: 3.13V to 5.5V
