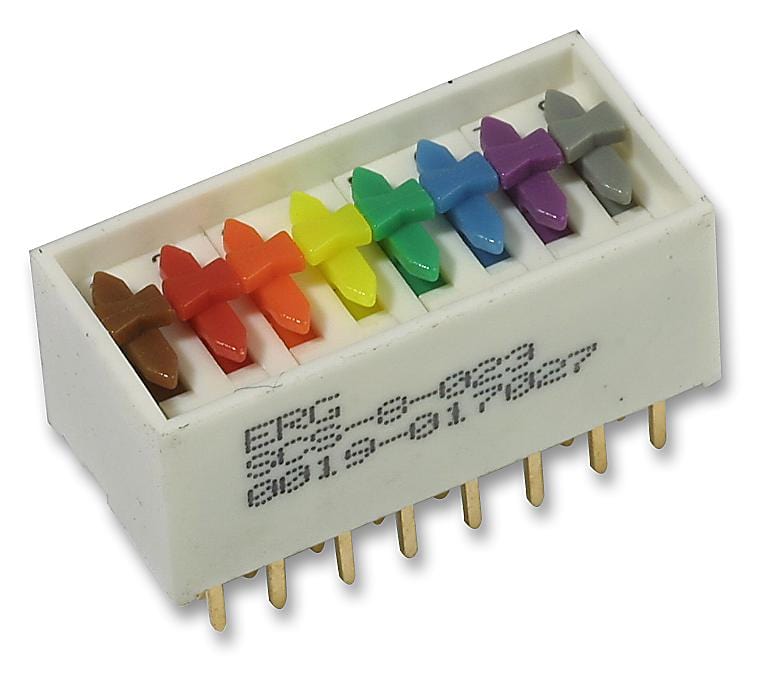

ERG COMPONENTS - SCS-8-023 - DIP / SIP Switch, 8 Circuits, Slide, Through Hole, SPDT, 100 V, 1 A
- No. of Circuits: 8Circuits
- Switch Actuator Style: Slide
- Switch Mounting: Through Hole
- Contact Configuration: SPDT
- Contact Voltage DC Max: 100V
- Contact Current DC Max: 1A
- Product Range: SCS Series
- Switch Type: -
- SVHC: No SVHC (17-Dec-2015)
- Contact Current AC Max: 1A
- Contact Current Rating: 1A
- Contact Resistance: 20mohm
- Contact to Contact Capacitance: 1pF
- Dielectric Strength VDC: 500V
- External Length / Height: 8.8mm
- External Width: 10.5mm
- Insulation Resistance: 100000Mohm
- Lead Spacing: 2.54mm
- Length: 22mm
- Material: Glass Filled Polyamide
- No. of Mechanical Operations: 30000
- No. of Positions: 8Ways
- Operating Temperature Max: 100°C
- Operating Temperature Min: -55°C
- Pin Configuration: TIL
- Pitch Spacing: 2.54mm
Verwachte verzendkosten
Bekijk ook eens

ERG COMPONENTS
SDS-8-023 Switch, Dil, ST, 8WAY Erg Components
Actie prijs€38,78
Op voorraad, 509 producten
ERG COMPONENTS
SDS-4-023 Switch, Dil, ST, 4WAY Erg Components
Actie prijs€21,64
Op voorraad, 185 producten
ERG COMPONENTS
SDC-1-023 Switch, Dil, DT, 1WAY Erg Components
Actie prijs€16,41
Op voorraad, 792 producten
ERG COMPONENTS
SDS-10-014 Switch, Dil, ST, 10WAY Erg Components
Actie prijs€43,80
Op voorraad, 353 producten
ERG COMPONENTS
SDS-2-023 Switch, Dil, ST, 2WAY Erg Components
Actie prijs€16,54
Op voorraad, 794 producten
MULTICOMP PRO
MCTIIR-08-T Switch, Dil, Tri-State, 8WAY multicomp Pro
Actie prijs€3,03
Op voorraad, 992 producten
MULTICOMP PRO
MCTIIR-10-T Switch, Dil, Tri-State, 10WAY multicomp Pro
Actie prijs€2,63
Op voorraad, 2097 producten
ERG COMPONENTS

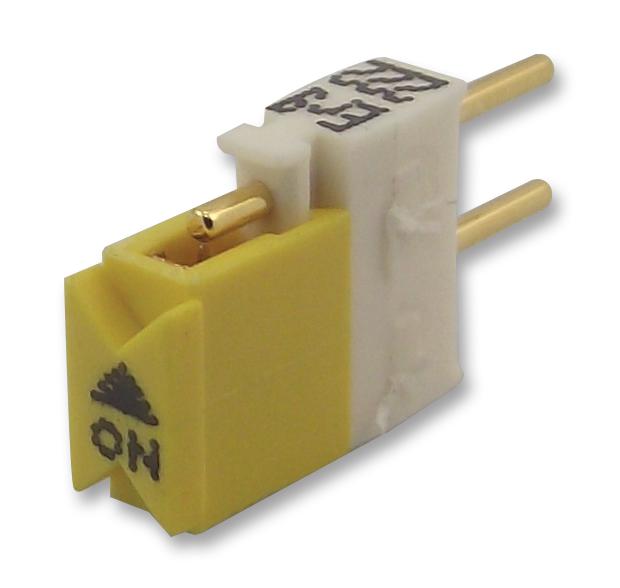

JSA4-1-G0 Switch, Jumper, 1 Way, SPST, Slide Erg Components
