SDS-6-014 Switch, Dil, ST, 6Way Erg Components

ERG COMPONENTSSKU:SDS-6-014 Bestelcode:422654

Prijs:
Actie prijs€30,48

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (641 units)

Documenten en downloads

Omschrijving

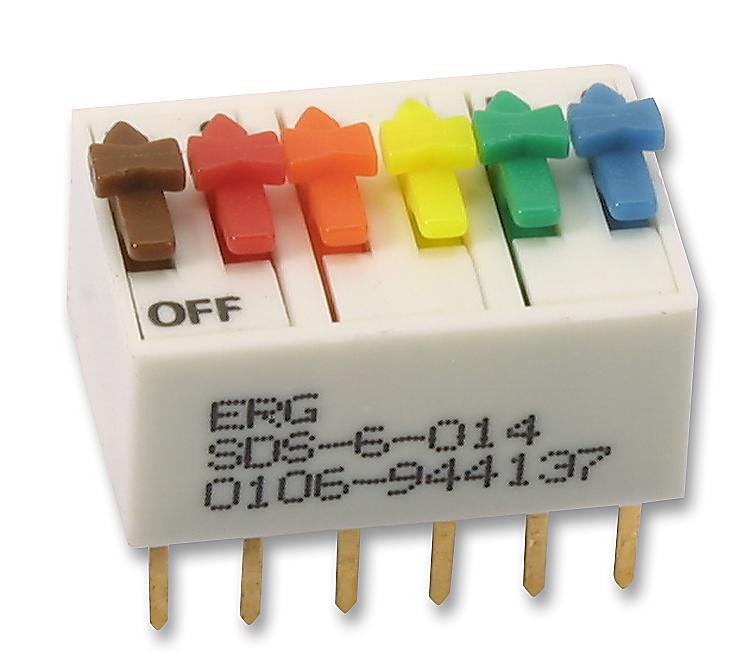

ERG COMPONENTS - SDS-6-014 - DIP / SIP Switch, 6 Circuits, Slide, Through Hole, SPST, 100 V, 1 A

  • No. of Circuits: 6Circuits
  • Switch Actuator Style: Slide
  • Switch Mounting: Through Hole
  • Contact Configuration: SPST
  • Contact Voltage DC Max: 100V
  • Contact Current DC Max: 1A
  • Product Range: SDS Series
  • Switch Type: -
  • SVHC: No SVHC (17-Dec-2015)
  • Contact Current AC Max: 1A
  • Contact Current Rating: 1A
  • Contact Resistance: 20mohm
  • Contact to Contact Capacitance: 1pF
  • Dielectric Strength VDC: 500V
  • External Length / Height: 8.3mm
  • External Width: 10.6mm
  • Insulation Resistance: 100000Mohm
  • Lead Spacing: 2.54mm
  • Length: 15mm
  • Material: Glass Filled Polyamide
  • No. of Mechanical Operations: 30000
  • No. of Positions: 6Ways
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -55°C
  • Pin Configuration: DIL
  • Pitch Spacing: 2.54mm
  • Row Pitch: 7.62mm
