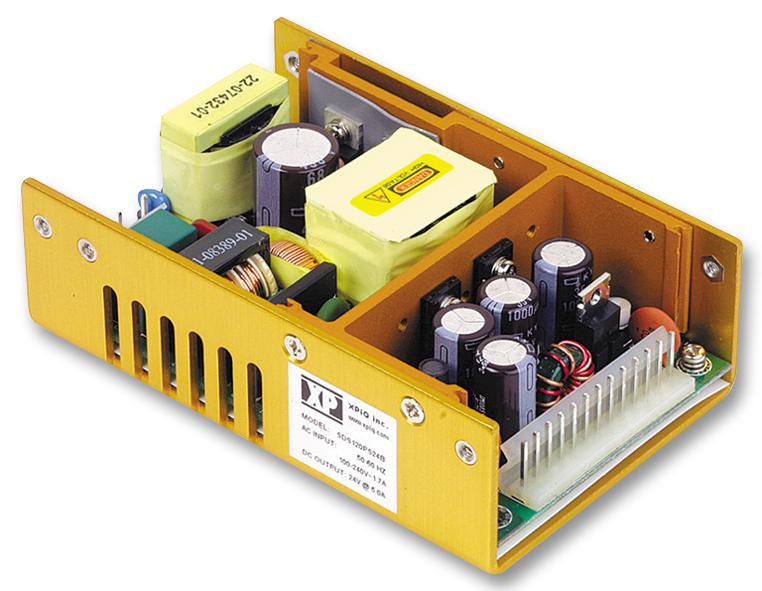

XP POWER - SDS120PS15B - AC/DC Open Frame Power Supply (PSU), ITE, 1 Output, 120 W, 90V AC to 264V AC, Fixed
- No. of Outputs: 1 Output
- Power Rating (Covection Cooling): 120W
- Power Rating (Forced Cooling): -
- Input Voltage VAC: 90V AC to 264V AC
- Power Supply Output Type: Fixed
- Output Voltage - Output 1: 15V
- Output Current - Output 1: 8A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Applications: Medical
- Approval Bodies: CE, CSA, cUL, EN, UL
- Approvals / Standards: EN 60601
- Efficiency: 80%
- External Depth: 39.2mm
- External Length / Height: 127mm
- External Width: 81.35mm
- Height: 39.2mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 260V
- Input Voltage AC Min: 90V
- Length: 127mm
- Line Regulation: 1%
- Load Regulation: 5%
- No. of Outputs: 1Outputs
- Operating Temperature Max: 70°C
- Operating Temperature Min: 0°C
- Output Current Max: 8A
- Output Power Max: 120W
- Output Ripple and Noise Voltage pk-pk: 1%
- Power Rating: 120W
- Width: 81.4mm
