Omschrijving

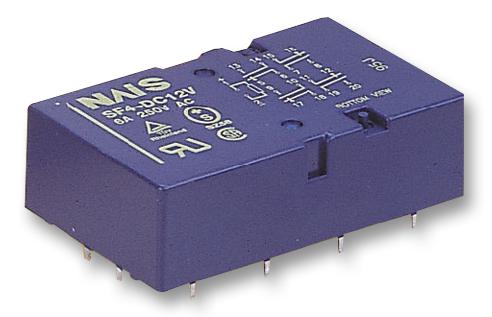

PANASONIC - SF4D-DC12V - Safety Relay, 12 VDC, 4PST-NO, 4PST-NC, SF4D, Through Hole, 6 A, Solder
- Coil Voltage: 12VDC
- Contact Configuration: 4PST-NO, 4PST-NC
- Product Range: SF4D Series
- Relay Mounting: Through Hole
- Contact Current: 6A
- Relay Terminals: Solder
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: -
- Contact Material: Silver Tin Oxide
- IP Rating: -
- SVHC: No SVHC (07-Jul-2017)
- Coil Operating Lower Percent Limit: 75%
- Coil Operating Upper Percent Limit: 120%
- Coil Resistance: 288ohm
- Coil Type: DC Monostable
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 10A
- Contact Current DC Max: 10A
- Contact Current Max: 6A
- Contact Voltage AC Max: 400V
- Contact Voltage DC Max: 24V
- Current Rating: 6A
- DC Coil Power: 500mW
- External Depth: 16.5mm
- External Height: 53.3mm
- External Length / Height: 53.3mm
- External Width: 25mm
- Nom Operating Power: 500mW
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Power Consumption: 500mW
- Relay Type: General Purpose
- Supply Voltage: 12V
- Switch Current Max: 20A
- Switching Current Max: 20A
- Switching Frequency: 10 Hz (without load)
