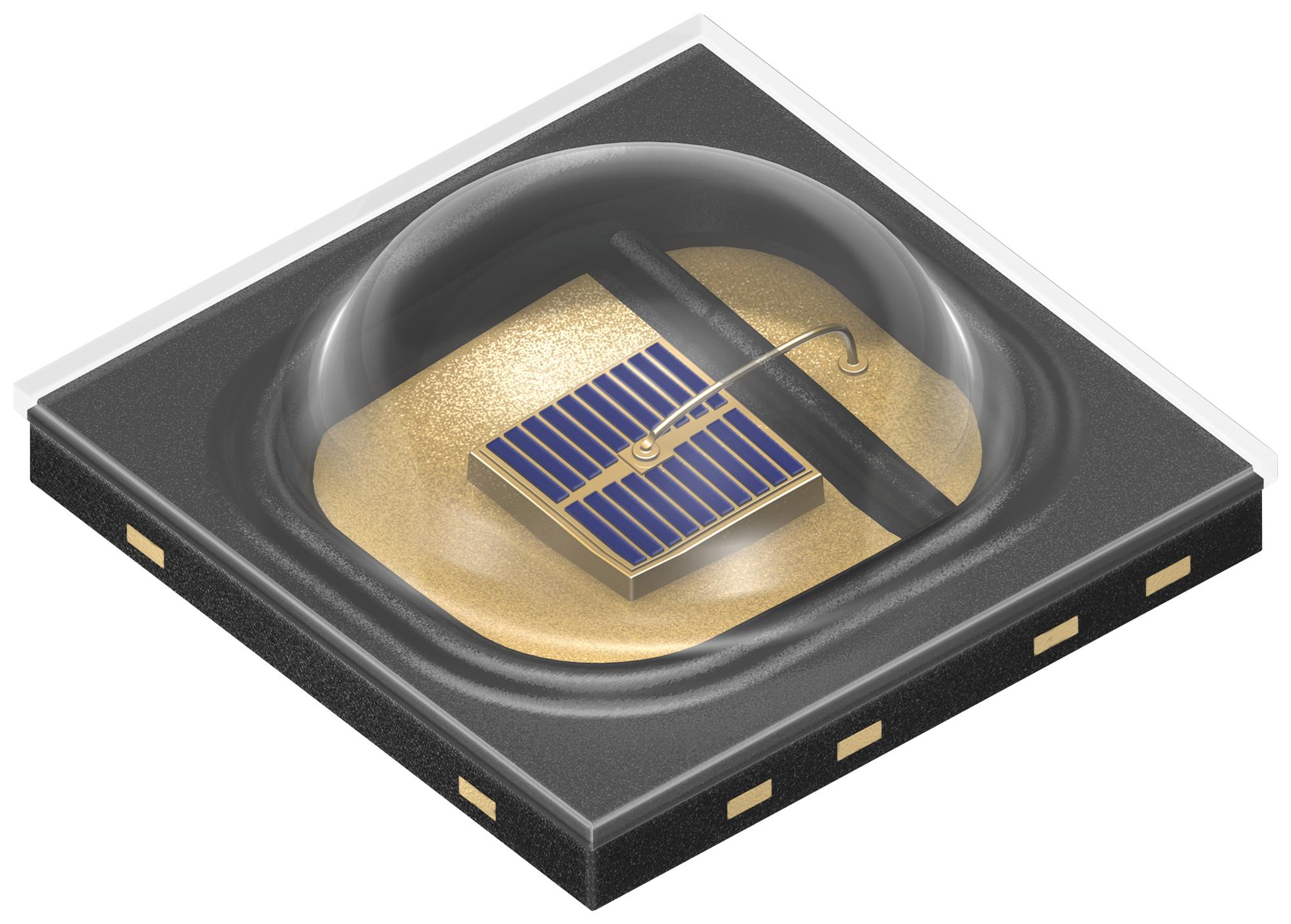

AMS OSRAM GROUP - SFH 4716AS A01 - Infrared Emitter, 860 nm, 150 °, SMD, 280 mW/Sr, 10 ns, 15 ns
- Peak Wavelength: 860nm
- Angle of Half Intensity: 150°
- Diode Case Style: SMD
- Radiant Intensity (Ie): 280mW/Sr
- Rise Time: 10ns
- Fall Time tf: 15ns
- Forward Current If(AV): 1.5A
- Forward Voltage VF Max: 3.65V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Automotive Qualification Standard: AEC-Q101
- Product Range: OSLON Black Series
- MSL: MSL 2 - 1 year
- SVHC: No SVHC (27-Jun-2018)
- Viewing Angle: 150°
