PC Board

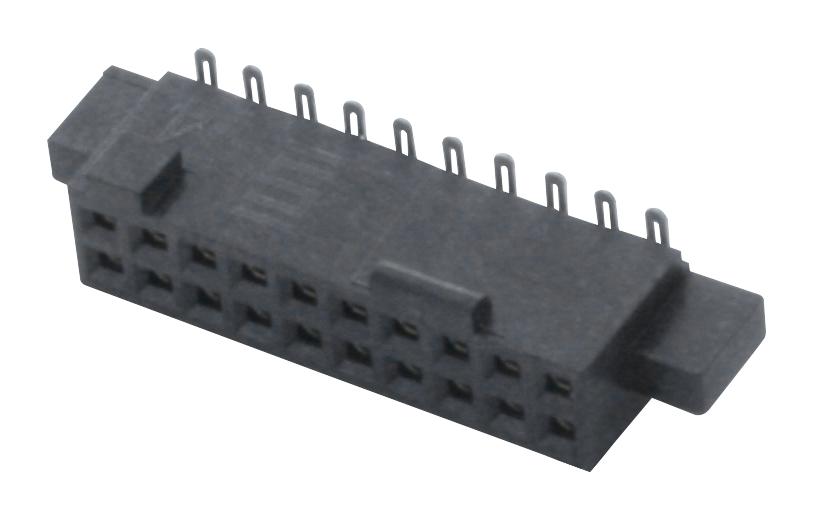

SFML-110-T2-S-D . RECEPTACLE, 1.27MM, DUAL, SMD, 20WAY SAMTEC
Ga met de muis over de afbeelding om in te zoomen Klik op de afbeelding om in te zomen
SFML-110-T2-S-D . RECEPTACLE, 1.27MM, DUAL, SMD, 20WAY SAMTEC

SFML-110-T2-S-D . Receptacle, 1.27mm, Dual, SMD, 20WAY Samtec

SAMTECSKU:SFML-110-T2-S-D . Bestelcode:1667991
Prijs:
€9,33

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

SAMTEC - SFML-110-T2-S-D . - PCB Receptacle, Locking Clip, Board-to-Board, 1.27 mm, 2 Rows, 20 Contacts, Surface Mount

  • Pitch Spacing: 1.27mm
  • No. of Contacts: 20Contacts
  • Gender: Receptacle
  • Product Range: SFML Series
  • Contact Termination Type: Surface Mount
  • No. of Rows: 2Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (15-Jan-2018)
  • Colour: Black
  • Contact Resistance: 15mohm
  • Contact Termination: Surface Mount Vertical
  • Current Rating: 2A
  • Lead Spacing: 1.27mm
  • No. of Mating Cycles: 10000
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Row Pitch: 1.27mm
  • Termination Method: Solder
  • Voltage Rating VAC: 350V
