SI7463DP-T1-e3 MOSFET, P Vishay

VISHAYSKU:SI7463DP-T1-E3 Bestelcode:1684081

Prijs:
Actie prijs€3,87

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (18075 units)

Documenten en downloads

Omschrijving

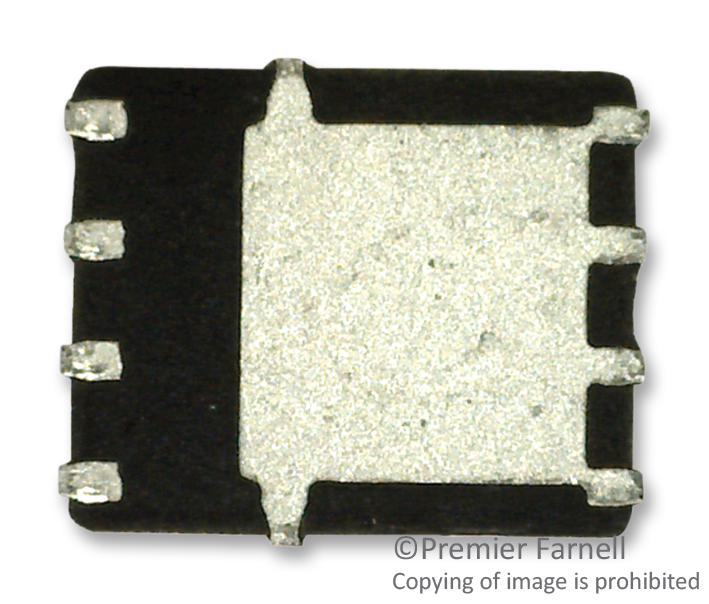

VISHAY - SI7463DP-T1-E3 - Power MOSFET, P Channel, 40 V, 18.6 A, 0.0075 ohm, PowerPAK SO, Surface Mount

  • Transistor Polarity: P Channel
  • Continuous Drain Current Id: 18.6A
  • Drain Source Voltage Vds: -40V
  • On Resistance Rds(on): 0.0075ohm
  • Rds(on) Test Voltage Vgs: 20V
  • Threshold Voltage Vgs: -3V
  • Power Dissipation Pd: 1.9W
  • Transistor Case Style: PowerPAK SO
  • No. of Pins: 8Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (15-Jun-2015)
  • Current Id Max: -18.6A
  • Junction Temperature Tj Max: 150°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Rise Time: 25ns
  • Termination Type: Surface Mount Device
  • Voltage Vds Typ: 40V
  • Voltage Vgs Max: -3V
  • Voltage Vgs Rds on Measurement: 10V
  • Voltage Vgs th Max: 3V
  • Voltage Vgs th Min: 1V
