Omschrijving

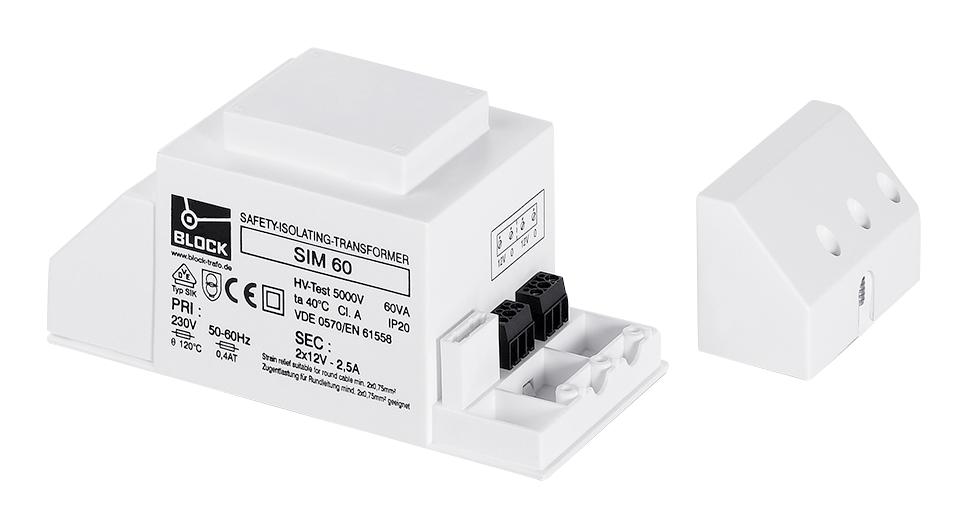

BLOCK - SIM60 - DIN Rail Mount Transformer, Class II, Safety Isolating, 230V, 2 x 12V, 60 VA, Class 2, SIM Series
- Power Rating: 60VA
- Secondary Voltages: 2 x 12V
- Current Rating: 260mA
- Isolation Transformer Primary Voltages: 1 x 230V
- Plug Type: -
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- AC Power: 60VA
- Approval Bodies: DIN, EN, IEC, VDE
- External Depth: 77mm
- External Length / Height: 76mm
- External Width: 166mm
- Fixing Centres LxW: 135 X 58
- Input Voltage: 230V
- Operating Temperature Max: 40°C
- Output Voltage: 12V
- Primary Voltages: 1 x 230V
- Regulation: 83.5%
- Secondary Power: 60VA
- Single Primary Voltage: 230V
- Supply Frequency Max: 60Hz
- Supply Frequency Min: 50Hz
- Transformer Type: Isolation
- Weight: 1.55kg
