Omschrijving

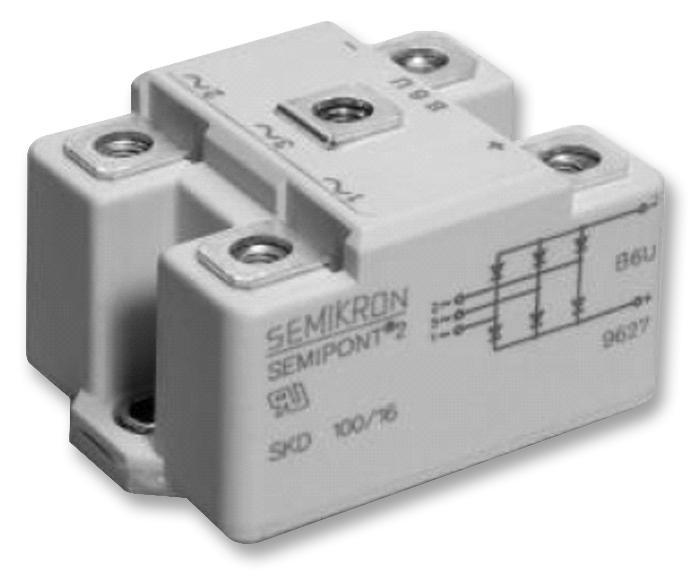

SEMIKRON - SKD100/16 - Bridge Rectifier, Three Phase, 1.6 kV, 110 A, Module, 5 Pins, 1.35 V
- No. of Phases: Three Phase
- Repetitive Reverse Voltage Vrrm Max: 1.6kV
- Forward Current If(AV): 110A
- Bridge Rectifier Case Style: Module
- Forward Voltage VF Max: 1.35V
- No. of Pins: 5Pins
- Operating Temperature Max: 125°C
- Product Range: SKD Series
- SVHC: No SVHC (15-Jun-2015)
- Body Height Max: 35.5mm
- Diode Mounting Type: Panel
- External Depth: 48mm
- External Length / Height: 65mm
- External Width: 65mm
- Fixing Hole Diameter: 5.2mm
- Forward Surge Current Ifsm Max: 1.15kA
- Isolation Voltage: 3.6kV
- Operating Temperature Min: -40°C
- Output Current Max: 110A
- RMS Input Voltage: 1.6V
- Termination Type: Screw
- Time on for IFSM: 10ms
- Voltage Vrsm: 1.6V
