SKHHAKA010 Switch, SPST, 0.05A, 12V, THT Alps Alpine

ALPS ALPINESKU:SKHHAKA010 Bestelcode:1656423

Prijs:
Actie prijs€0,50

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2423 units)

Documenten en downloads

Omschrijving

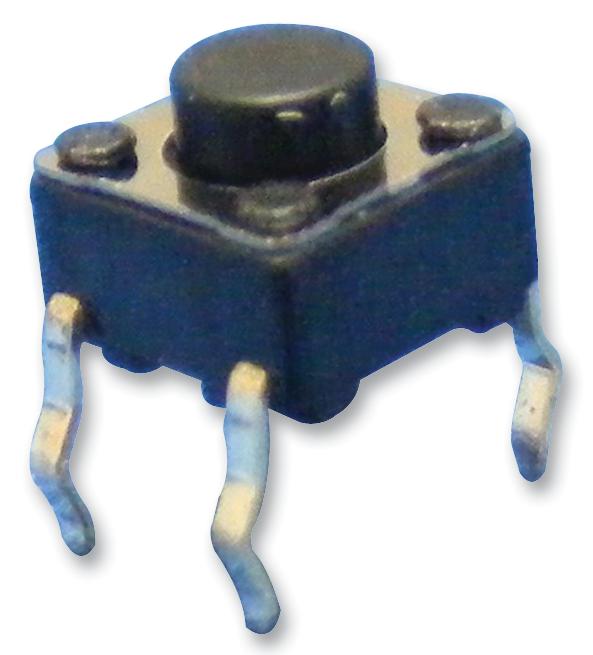

ALPS ALPINE - SKHHAKA010 - Tactile Switch, SKHH, Top Actuated, Through Hole, Round Button, 100 gf, 50mA at 12VDC

  • Product Range: SKHH Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: Through Hole
  • Actuator Style: Round Button
  • Actuating Force: 100gf
  • Contact Rating: 50mA at 12VDC
  • Switch Dimensions (L x W): 6mm x 6mm
  • IP Rating: -
  • Illumination: Non Illuminated
  • SVHC: No SVHC (20-Jun-2016)
  • Actuation Type: Top
  • Actuator / Cap Colour: Black
  • Contact Current @ Contact Voltage DC Max: 50mA
  • Contact Current @ Contact Voltage DC Min: 10µA
  • Contact Current Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Max: 12VDC
  • Contact Voltage DC Min: 1VDC
  • Contact Voltage DC Nom: 12V
  • External Depth: 6mm
  • External Length / Height: 5mm
  • External Width: 6mm
  • No. of Electrical Operations: 1000000
  • Operating Force: 0.98N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Switch Terminals: Solder
  • Travel: 0.25mm
