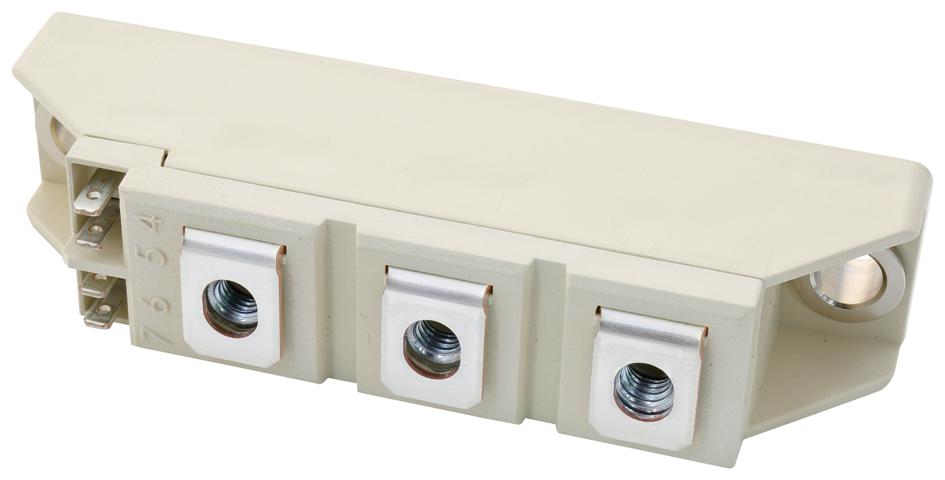

SEMIKRON - SKKT92B12E - Thyristor Module, Series Connected, 95 A, 1.2 kV
- SCR Module Type: Series Connected - SCRs
- Peak Repetitive Off-State Voltage, Vdrm: 1.2kV
- Gate Trigger Current Max, Igt: 150mA
- Current It av: 95A
- On State RMS Current IT(rms): 150A
- Peak Non Rep Surge Current Itsm 50Hz: 2kA
- Holding Current Max Ih: 250mA
- Gate Trigger Voltage Max Vgt: 3V
- Operating Temperature Max: 125°C
- Product Range: -
- SVHC: No SVHC (15-Jun-2015)
- Current Itsm: 2000A
- No. of Pins: 7Pins
- Operating Temperature Min: -40°C
- Repetitive Reverse Voltage Vrrm Max: 1200V
- Thyristor Case: Module
- Thyristor Case Style: Module
