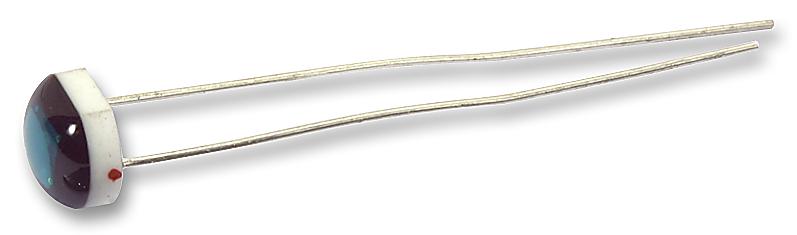

SLD-70 BG2A Photodiode, BG Filtered Advanced PHOTONIX

ADVANCED PHOTONIXSKU:SLD-70 BG2A Bestelcode:1219006

Prijs:
Actie prijs€10,80

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (424 units)

Documenten en downloads

Omschrijving

ADVANCED PHOTONIX - SLD-70 BG2A - Photodiode, 60 °, 100 nA, 550 nm, Planar-2

  • No. of Pins: 2Pins
  • Diode Case Style: Planar
  • Wavelength of Peak Sensitivity: 550nm
  • Angle of Half Sensitivity ±: 60°
  • Dark Current: 0.1µA
  • Operating Temperature Min: -20°C
  • Operating Temperature Max: 85°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • Active Area: 9.8mm²
  • Breakdown Voltage Vbr: 50V
  • Diode Type: Photodiode
  • Fall Time tf: 6µs
  • Operating Temperature Range: -20°C to +85°C
  • Peak Spectral Response Wavelength: 550nm
  • Peak Wavelength: 550nm
  • Reverse Voltage Vr Max: 50V
  • Rise Time: 4µs
  • Short Circuit Current: 55µA
  • Wavelength Typ: 550nm
