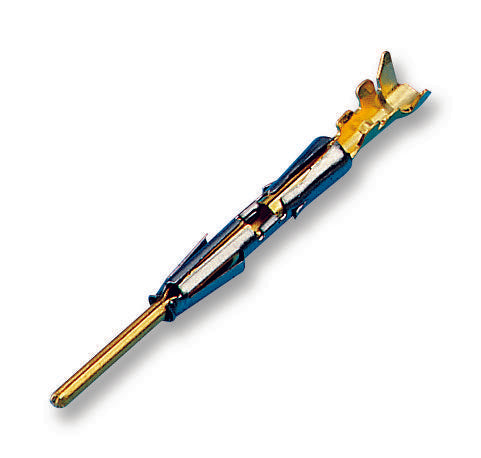

SOURIAU-SUNBANK / EATON - SM24WL3S26 - Circular Connector Contact, Stamped, Souriau Trim Trio, Pin, Crimp, 24 AWG, 26 AWG, UT0W Connectors
- Product Range: Trim Trio Series
- Contact Gender: Pin
- Contact Termination Type: Crimp
- Wire Size AWG Max: 24AWG
- Wire Size AWG Min: 26AWG
- For Use With: UT0W Connectors
- Contact Plating: Gold Plated Contacts
- Contact Material: Copper Alloy
- SVHC: Lead (15-Jan-2019)
- Cable Diameter Max: 1.58mm
- Cable Diameter Min: 0.89mm
- Contact Resistance: 9.5mohm
- Contact Size: 16
- Contact Termination: Crimp
- Current Rating: 5A
- No. of Mating Cycles: 500
- Wire Area Size Max: 0.25mm²
- Wire Area Size Min: 0.13mm²
