SMBJ24CA-e3/52 Diode, TVs, 600W, 24V, BIDIR, SMB Vishay

VISHAYSKU:SMBJ24CA-E3/52 Bestelcode:1698871

Prijs:
Actie prijs€0,77

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1475 units)

Documenten en downloads

Omschrijving

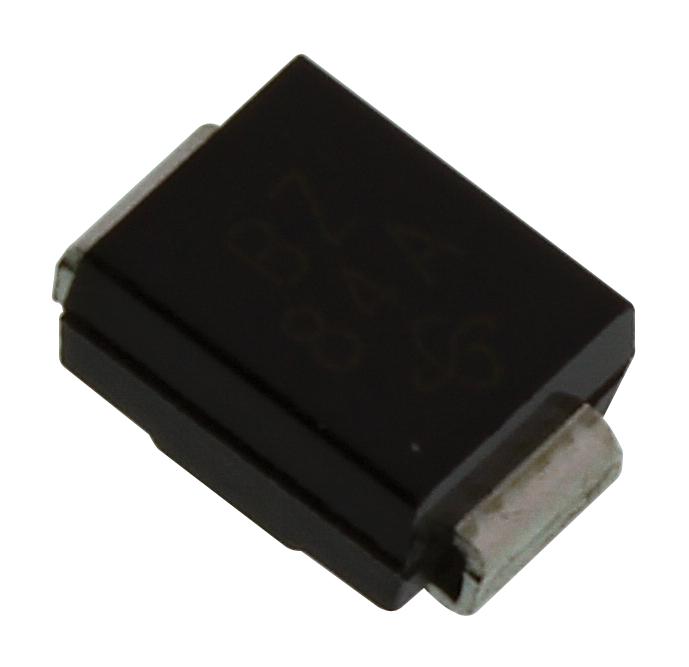

VISHAY - SMBJ24CA-E3/52 - TVS Diode, SMBJ, Bidirectional, 24 V, 38.9 V, DO-214AA (SMB), 2 Pins

  • Product Range: SMBJ Series
  • TVS Polarity: Bidirectional
  • Reverse Stand-Off Voltage Vrwm: 24V
  • Clamping Voltage Vc Max: 38.9V
  • Diode Case Style: DO-214AA
  • No. of Pins: 2Pins
  • Breakdown Voltage Min: 26.7V
  • Breakdown Voltage Max: 29.5V
  • Peak Pulse Power Dissipation: 600W
  • Automotive Qualification Standard: -
  • SVHC: Lead (15-Jan-2019)
  • Breakdown Voltage: 29.5V
  • Breakdown Voltage Range: 26.7V to 29.5V
  • Breakover Voltage Min: 26.7V
  • Diode Type: Bidirectional TVS
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Peak Pulse Current Ippm: 14A
  • Power Dissipation Pd: 600W
  • Reverse Leakage Current Max: 1µA
  • Stand-off Voltage: 24V
  • Termination Type: Surface Mount Device
  • Test Current: 1mA
  • Time Measured: 50ms
