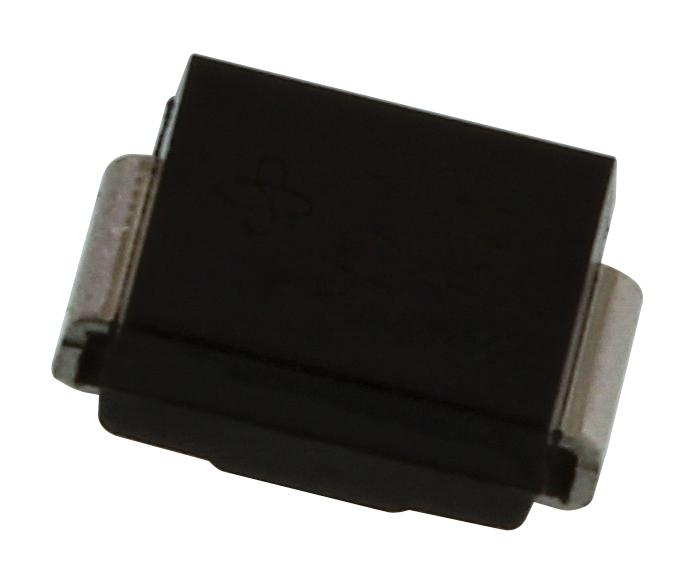

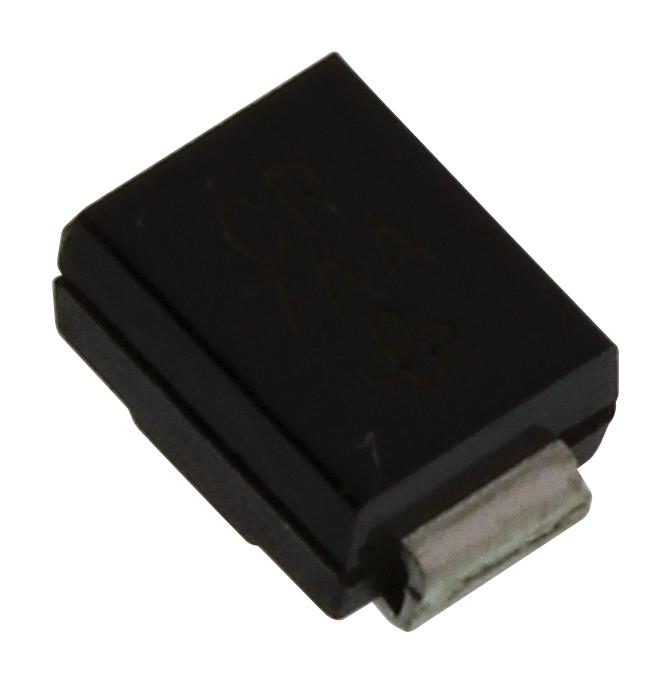

VISHAY - SMBJ40CA-E3/52 - TVS Diode, TRANSZORB SMBJ, Bidirectional, 40 V, 64.5 V, DO-214AA (SMB), 2 Pins
- Product Range: TRANSZORB SMBJ Series
- TVS Polarity: Bidirectional
- Reverse Stand-Off Voltage Vrwm: 40V
- Clamping Voltage Vc Max: 64.5V
- Diode Case Style: DO-214AA
- No. of Pins: 2Pins
- Breakdown Voltage Min: 44.4V
- Breakdown Voltage Max: 49.1V
- Peak Pulse Power Dissipation: 600W
- Automotive Qualification Standard: AEC-Q101
- SVHC: Lead (15-Jan-2019)
- Breakdown Voltage: 49.1V
- Breakdown Voltage Range: 44.4V to 49.1V
- Breakover Voltage Min: 44.4V
- Diode Type: Bidirectional TVS
- Operating Temperature Max: 150°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Peak Pulse Current Ippm: 8.4A
- Power Dissipation Pd: 600W
- Reverse Leakage Current Max: 1µA
- Stand-off Voltage: 40V
- Termination Type: Surface Mount Device
- Test Current: 1mA
- Time Measured: 50ms
