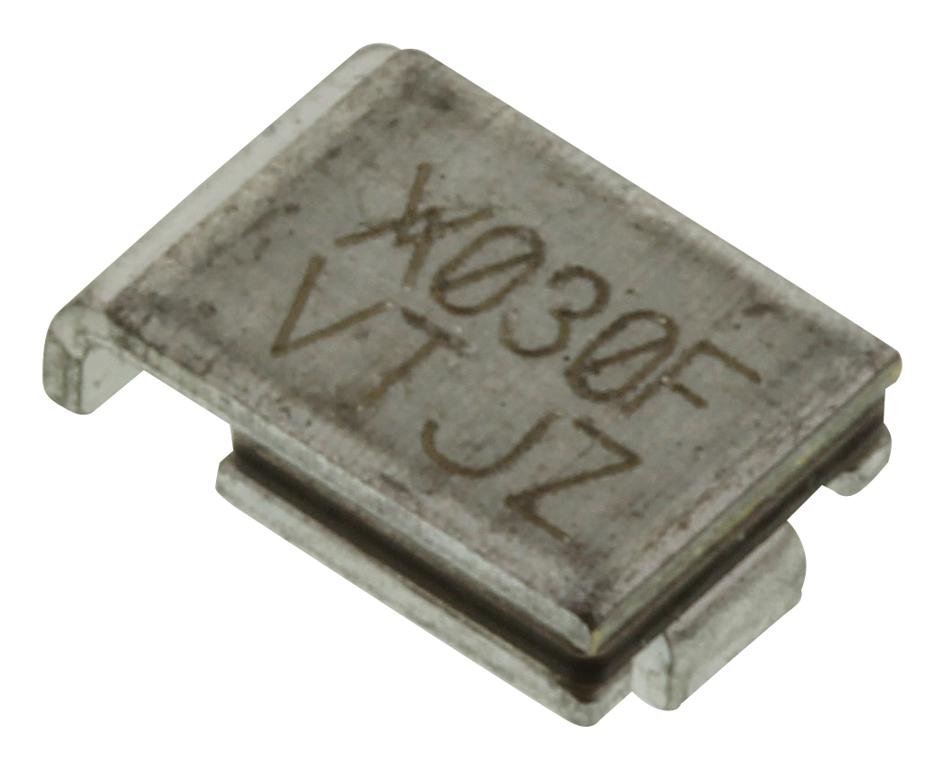

SMD030F-2 PolySwitch, SMD, 0.3a LITTELFUSE

LITTELFUSESKU:SMD030F-2 Bestelcode:1175870

Prijs:
Actie prijs€0,78

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (12119 units)

Documenten en downloads

Omschrijving

LITTELFUSE - SMD030F-2 - Resettable Fuse, PPTC, 2920 (7351 Metric), PolySwitch, 60 VDC, 300 mA, 600 mA, 3 s

  • Thermistor Mounting: SMD
  • Product Range: PolySwitch Series
  • Holding Current: 300mA
  • Tripping Current: 600mA
  • Voltage Rating: 60VDC
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jun-2015)
  • Approval Bodies: CSA, TUV
  • Approval Category: UL Recognised
  • Breaking Capacity Current AC: 10A
  • Carrying Current Max: 10A
  • External Depth: 3.2mm
  • External Length / Height: 7.98mm
  • External Width: 5.44mm
  • Holding Current Max Ih: 0.3A
  • Initial Resistance Max: 4.8ohm
  • Initial Resistance Min: 1.2ohm
  • Operating Voltage: 60V
  • PTC Fuse Case Style: SMD
  • Surface Tripped Temperature Max: 125°C
  • Tab Blade Thickness: 0.56mm
  • Tab Width: 2.41mm
  • Termination Type: Surface Mount Device
  • Thermistor Type: PTC Resettable Fuse
