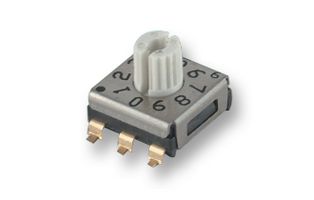

SMR 14016 Rotary Coded Switch Knitter-Switch

KNITTER-SWITCHSKU:SMR 14016 Bestelcode:1218904

Prijs:
Actie prijs€13,53

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (148 units)

Documenten en downloads

Omschrijving

KNITTER-SWITCH - SMR 14016 - Rotary Coded Switch, SMR14016, Surface Mount, 16 Position, 50 VDC, Hexadecimal, 100 mA

  • Product Range: SMR14016 Series
  • Switch Mounting: SMD
  • No. of Switch Positions: 16 Position
  • Switching Voltage: 50VDC
  • Output Code: Hexadecimal
  • Switching Current: 100mA
  • Switch Construction: Sealed
  • Actuator Level: Raised
  • SVHC: No SVHC (15-Jan-2018)
  • Angle: 22.5°
  • Angle of Throw: 22.5°
  • Contact Current DC Max: 100mA
  • Contact Current Rating: 100mA
  • Contact Resistance: 200mohm
  • Contact Voltage DC Max: 50V
  • Contact Voltage DC Min: 5VDC
  • Indexing Angle: 22.5°
  • No. of Positions: 16Ways
  • Operating Temperature Max: 75°C
  • Operating Temperature Min: -25°C
  • Proof Voltage: 250V
  • Repeatability: 20000
  • Shaft Diameter: 3.4mm
