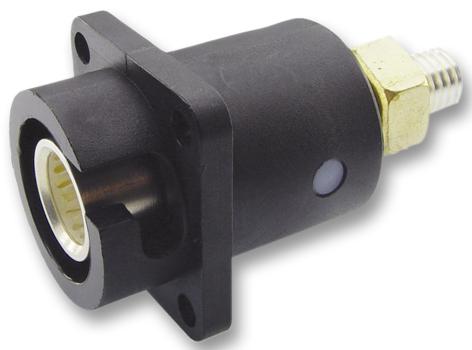

ITT CANNON - SNPF-S-TP-BK - High Power Connector, Snaplock, Receptacle, 415 VAC, 250 A, Panel Mount, Screw
- Product Range: Snaplock Series
- Gender: Receptacle
- Voltage Rating: 415VAC
- Current Rating: 250A
- Connector Mounting: Panel Mount
- Contact Termination Type: Screw
- Colour: Black
- Connector Type: Standard Power Entry
- Contact Termination: Screw
- Fixing Centres: 30mm
- Fixing Hole Diameter: 5mm
- Flammability Rating: UL94V-0
- IP / NEMA Rating: IP67
- Material: High Temp. Thermoplastic
- No. of Contacts: 1Contacts
- No. of Mating Cycles: 500
- Operating Temperature Max: +125°C
- Operating Temperature Min: -30°C
- Panel Cutout Diameter: 33.5mm
- Termination Method: Crimp
- Thread Size: M12
- Voltage Rating VAC: 415V
