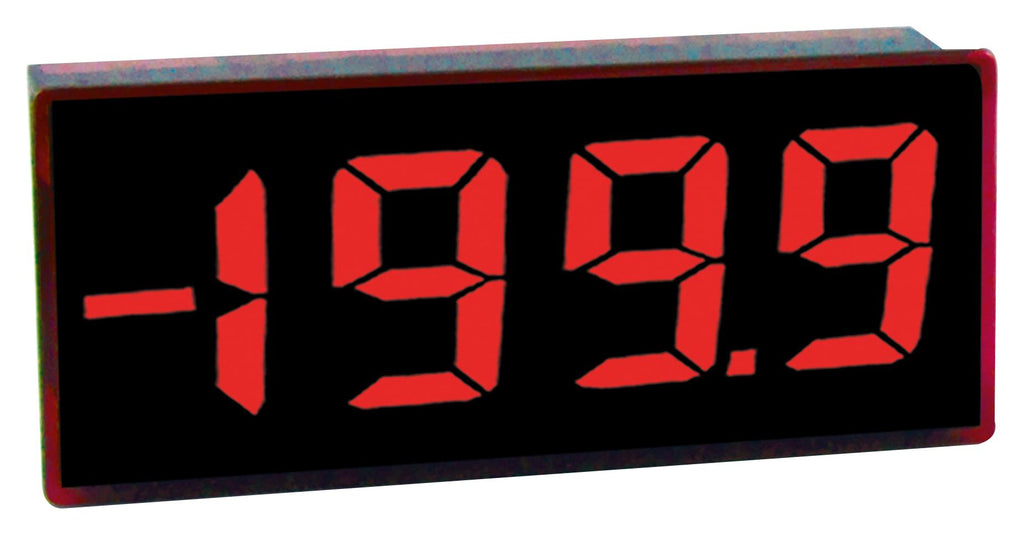

LASCAR - SP 8-100 - Digital Panel Meter, , 3-1/2 Digits, DC Voltage, 0mV to 200mV
- No. of Digits / Alpha: 3-1/2
- Meter Function: DC Voltage
- Meter Range: 0mV to 200mV
- Digit Height: 14.2mm
- Panel Cutout Height: 23.6mm
- Panel Cutout Width: 55.2mm
- Supply Voltage Min: 4.75V
- Supply Voltage Max: 5.25V
- Operating Temperature Min: 0°C
- Operating Temperature Max: 50°C
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Accuracy: 0.1 %
- Accuracy %: 0.1%
- Background Colour: Black
- Backlighting Colour: Red
- Character Size: 14.2mm
- Character Type: LED
- Display Area Depth: 1mm
- Display Area Width: 21.4mm
- Display Size: 53.2mm x 21.6mm
- Display Technology: LCD
- External Depth: 20mm
- External Length / Height: 55.1mm
- External Width: 23.4mm
- Font Colour: Red
- Full Scale Reading: 200mV
- Input Current: 50mA
- Leakage Current: 1µA
- Linearity, +: 1%
- Linearity, -: 1%
- No. of Characters: 4 Characters
- No. of Colours: 1
- Operating Temperature Range: 0°C to +50°C
- Panel Cutout Depth: 20mm
- Supply Current: 50mA
- Supply Voltage DC Max: 5.25V
- Supply Voltage DC Min: 4.75V
- Supply Voltage Range: 4.75V to 5.25V
