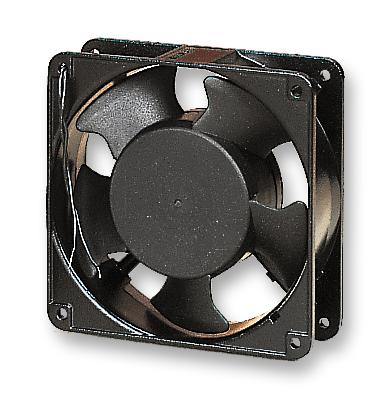

SP101A/1123HSL.GN Fan, 119mm, 115VAC multicomp

MULTICOMPSKU:SP101A/1123HSL.GN Bestelcode:9606629

Prijs:
Actie prijs€34,12

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (41 units)

Documenten en downloads

Omschrijving

MULTICOMP - SP101A/1123HSL.GN - AC Axial Fan, 115V, Square, 119 mm, 38 mm, Sleeve Bearing, 105 CFM

  • Supply Voltage: 115V
  • Current Type: AC
  • Fan Frame Size: 119mm
  • External Depth: 38mm
  • Noise Rating: 48dBA
  • Flow Rate - Imperial: 105cu.ft/min
  • Flow Rate - Metric: 2.97m³/min
  • Bearing Type: Sleeve
  • Power Connection Type: 2 Lead Wires
  • Current Rating: 210mA
  • Product Range: Slimline Series
  • Power Rating: -
  • IP Rating: -
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: CSA, TUV, UL
  • External Diameter: 119mm
  • External Height: 119mm
  • External Width: 119mm
  • Fixing Centres: 105mm
  • Fixing Hole Diameter: 4.3mm
  • Flammability Rating: UL94V-0
  • Frame Dimensions: 119mm x 119mm x 38mm
  • Lead Length: 300mm
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -10°C
  • Operating life Time: 30000h
  • Panel Cutout Diameter: 116mm
  • Power Consumption: 18W
  • Speed Range Max: 2900rpm
  • Type: Standard,119mm
