Omschrijving

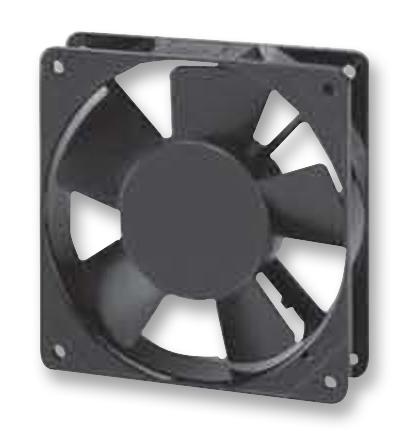

SUNON - SP101AT 1122HBL.GN - AC Axial Fan, 115V, Square, 120 mm, 25 mm, Ball Bearing, 80 CFM
- Supply Voltage: 115V
- Current Type: AC
- Fan Frame Size: 120mm
- External Depth: 25mm
- Noise Rating: 48dBA
- Flow Rate - Imperial: 80cu.ft/min
- Flow Rate - Metric: 2.26m³/min
- Bearing Type: Ball
- Power Connection Type: 2 Lead Wires
- Current Rating: 210mA
- Product Range: SP Series
- Power Rating: 19W
- IP Rating: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CE, TUV, UL
- Case Material: Aluminium Alloy
- Current Consumption: 0.21A
- External Height: 120mm
- External Width: 120mm
- Frame Dimensions: 120mm x 120mm x 25mm
- Frequency Max: 60Hz
- Frequency Min: 50Hz
- Lead Length: 320mm
- Power Consumption: 19W
- Speed Range Max: 2150rpm
