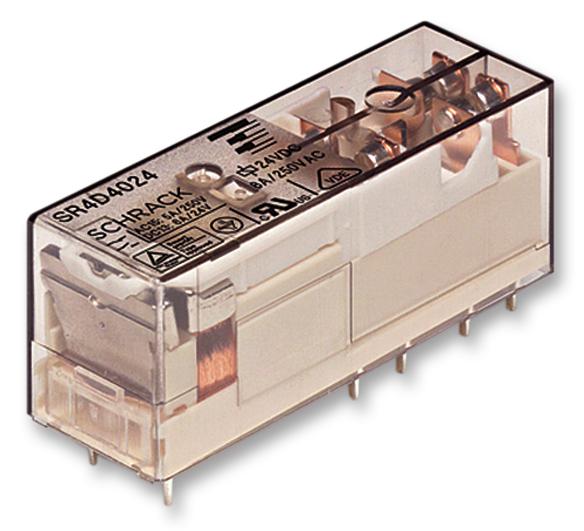

SR4D4024 Relay, Safety, DPST-NO, NC, 250VAC, 8A SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYSKU:3-1415055-1 Bestelcode:1175093

Prijs:
Actie prijs€29,54

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1149 units)

Documenten en downloads

Omschrijving

SCHRACK - TE CONNECTIVITY - 3-1415055-1 - Safety Relay, 24 VDC, DPST-NO, DPST-NC, SR4 D/M, Through Hole, 8 A, Solder

  • Coil Voltage: 24VDC
  • Contact Configuration: DPST-NO, DPST-NC
  • Product Range: SR4 D/M Series
  • Relay Mounting: Through Hole
  • Contact Current: 8A
  • Relay Terminals: Solder
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: -
  • Contact Material: Silver Tin Oxide
  • IP Rating: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: TUV, VDE
  • Approval Category: UL Recognised
  • Coil Resistance: 720ohm
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 8A
  • Contact Current Max: 8A
  • Contact Current Min: 10mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Max: 400V
  • Current Rating: 8A
  • DC Coil Power: 800mW
  • Dielectric Voltage Coil to Contact: 4000VAC
  • Dielectric Voltage Contact to Contact: 1500VAC
  • External Depth: 40mm
  • External Height: 16.5mm
  • External Length / Height: 16mm
  • External Width: 13mm
  • Insulation Resistance: 100Mohm
  • Mechanical Life: 10,000,000 Operations
  • Must Actuate Voltage: 18V
  • Must Release Voltage: 2.4V
  • No. of Mechanical Operations: 10000000
  • Operating Temperature Max: 70°C
  • Operating Time: 12ms
