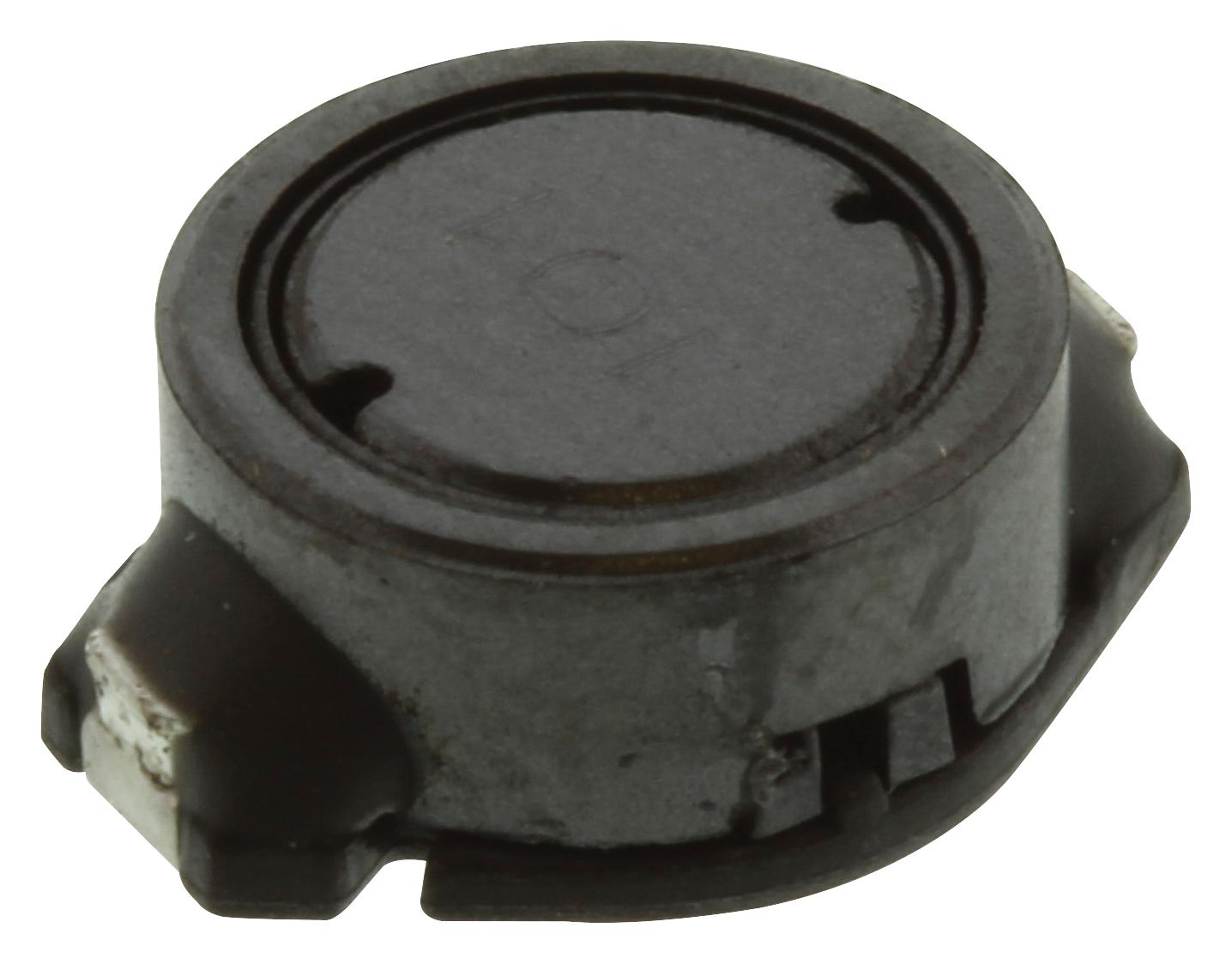

BOURNS - SRR1005-1R0M - Power Inductor (SMD), 1 µH, 4.5 A, Shielded, 8 A, SRR1005, 12.7mm x 10mm x 5.2mm
- Inductance: 1µH
- RMS Current (Irms): 4.5A
- Inductor Construction: Shielded
- Saturation Current (Isat): 8A
- Product Range: SRR1005 Series
- Power Inductor Case: 12.7mm x 10mm x 5.2mm
- DC Resistance Max: 0.017ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 25
- Q Test Frequency: 7.96MHz
- Self Resonant Frequency Min: 120MHz
