Omschrijving

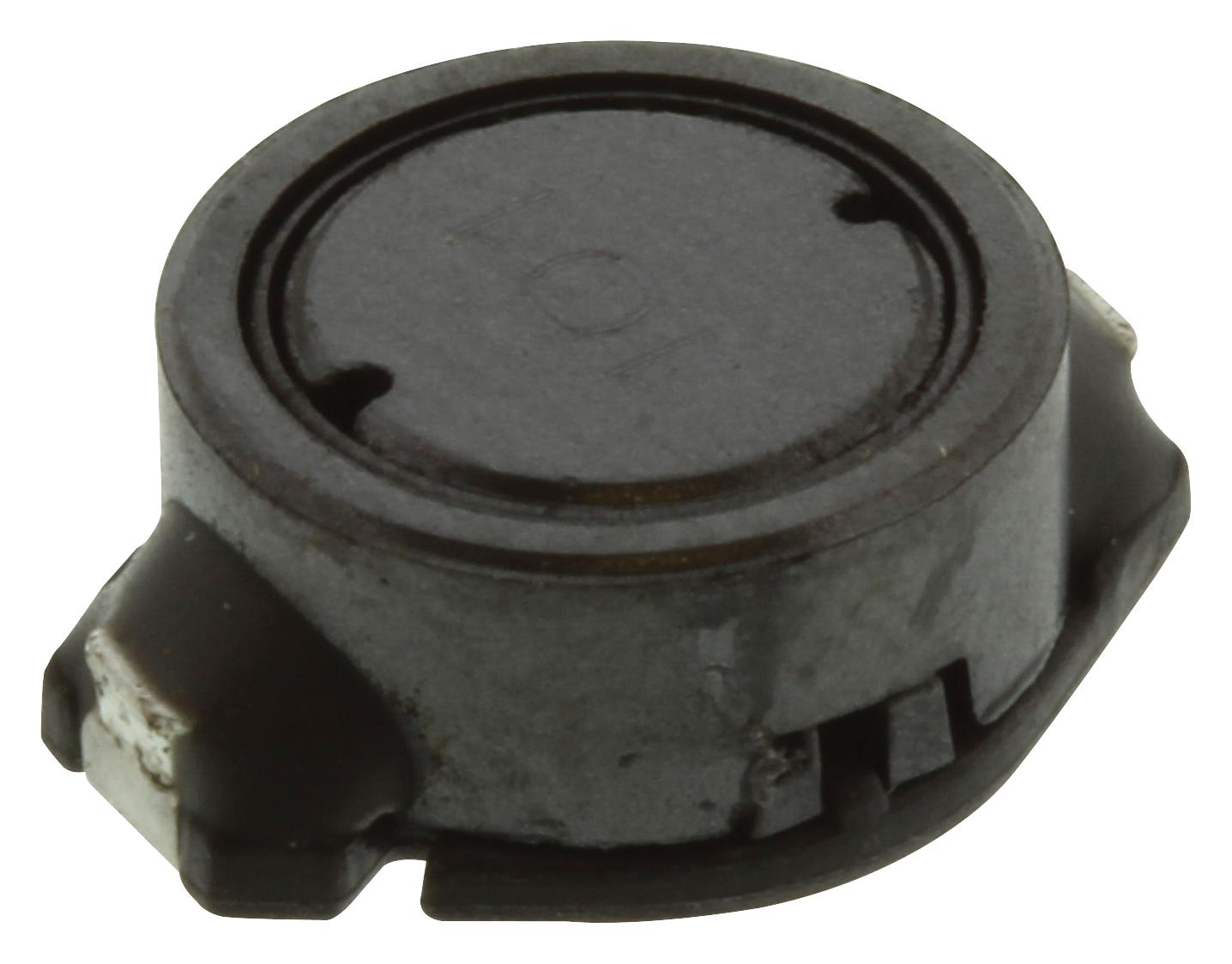

BOURNS - SRR1005-330Y - Power Inductor (SMD), 33 µH, 1.2 A, Shielded, 1.56 A, SRR1005
- Inductance: 33µH
- RMS Current (Irms): 1.2A
- Inductor Construction: Shielded
- Saturation Current (Isat): 1.56A
- Product Range: SRR1005 Series
- Power Inductor Case: 12.7mm x 10mm x 5.2mm
- DC Resistance Max: 0.16ohm
- Inductance Tolerance: ± 15%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 40
- Q Test Frequency: 2.52MHz
- Self Resonant Frequency Min: 15MHz
