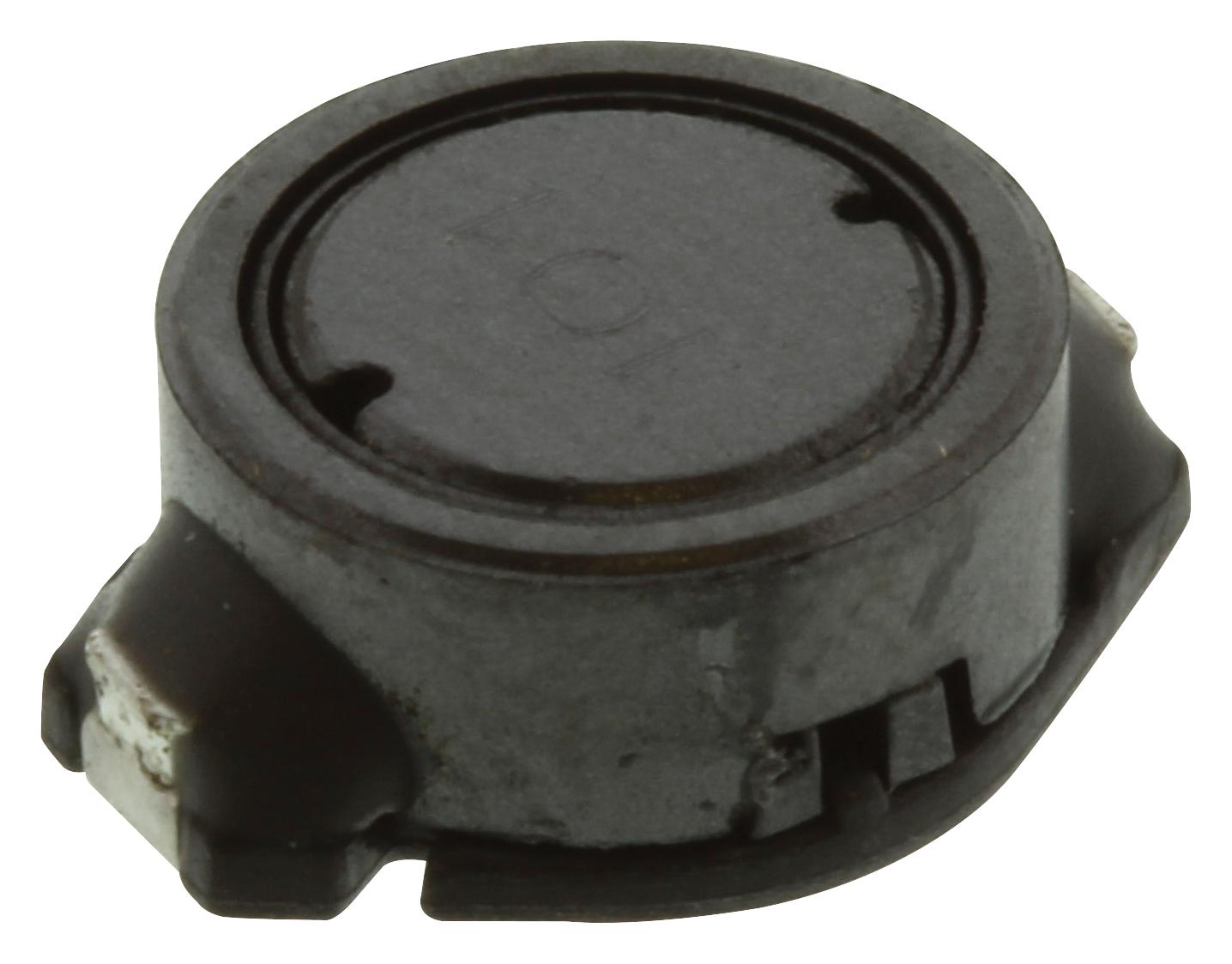

SRR1005-390Y INDUCTOR, 39UH, 15%, 1.05A, SMD BOURNS

BOURNS - SRR1005-390Y - Power Inductor (SMD), 39 µH, 1.05 A, Shielded, 1.4 A, SRR1005, 12.7mm x 10mm x 5.2mm

• Inductance: 39µH
• RMS Current (Irms): 1.05A
• Inductor Construction: Shielded
• Saturation Current (Isat): 1.4A
• Product Range: SRR1005 Series
• Power Inductor Case: 12.7mm x 10mm x 5.2mm
• DC Resistance Max: 0.18ohm
• Inductance Tolerance: ± 15%
• SVHC: No SVHC (15-Jan-2018)
• No. of Pins: 2Pins
• Q Factor: 40
• Q Test Frequency: 2.52MHz
• Self Resonant Frequency Min: 13MHz
