Omschrijving

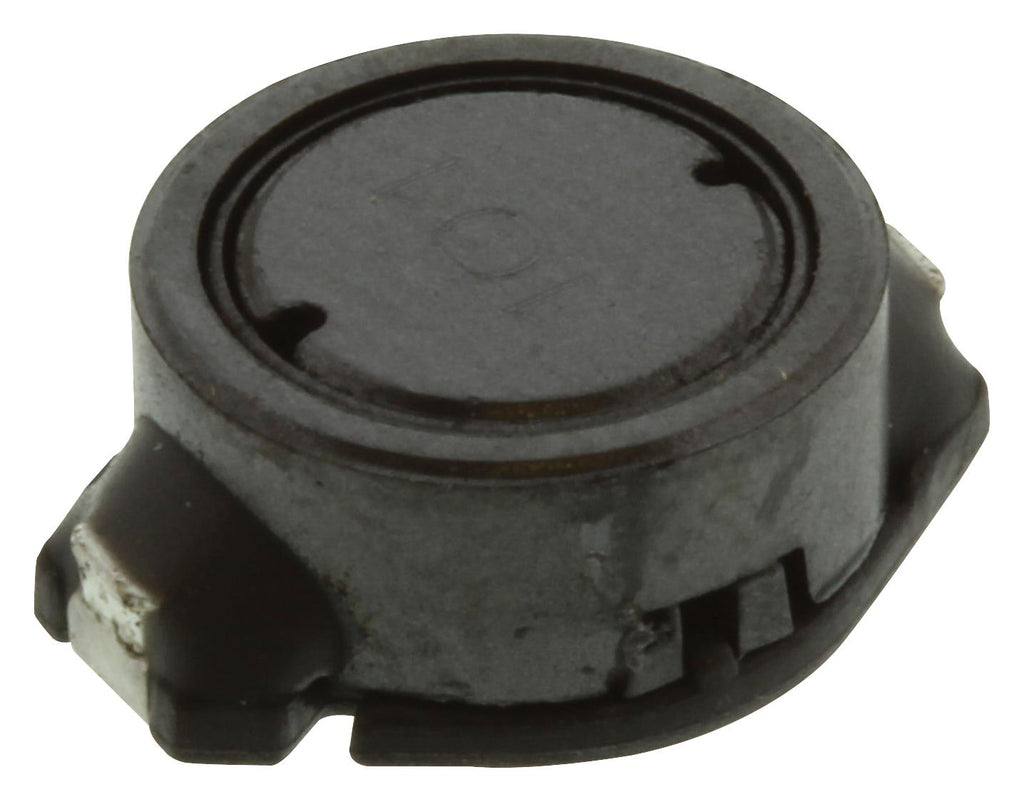

BOURNS - SRR1005-7R0M - Power Inductor (SMD), 7 µH, 2.2 A, Shielded, 3.2 A, SRR1005, 12.7mm x 10mm x 5.2mm
- Inductance: 7µH
- RMS Current (Irms): 2.2A
- Inductor Construction: Shielded
- Saturation Current (Isat): 3.2A
- Product Range: SRR1005 Series
- Power Inductor Case: 12.7mm x 10mm x 5.2mm
- DC Resistance Max: 0.055ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 22
- Q Test Frequency: 7.96MHz
- Self Resonant Frequency Min: 32MHz
